Chapter 5 – More Combinational Circuits

Chapter Overview

The previous chapter of this text focused on Boolean functions and the SSI (Small Scale Integration) circuits used to implement those functions.  We shall find it convenient to define some higher-level components that contain the equivalent of a number of SSI components and function at a higher level, closer to the logical description of problems we want solved.  These components we now investigate fall under the classification of MSI (Medium Scale Integration) chips.  Specifically, we shall study the following:

1.   Decoders and Encoders.
2.   Multiplexers and Demultiplexers.
4.   The Barrel Shifter.
5.   The ALU (Arithmetic Logic Unit)

Beginning with this revision of the chapter, we shall study two variants of some chips: the active high (easier for some to understand) and the active low (as seen in most commercial chips).  This change is motivated by the increasing use of circuit emulators in this course.

Chapter Assumptions

Again, it is assumed that this material is mostly review for the student.

Codes and A Review of Binary Arithmetic

In our study of digital circuits, it is time to move to a discussion of MSI components.  Many of these are closely tied to the idea of binary codes to represent unsigned integers.  For this reason, we shall indulge in a brief review of unsigned binary numbers and illustrate our discussion with three-bit binary codes as examples.

The first thing to be noted is that codes have many uses besides those commonly called “secret codes”, which are more often than not secret ciphers.  Commercial codes arose in the age of telegrams, in which one would be charged by the word – defined to be any grouping of five characters.  Books of commercial codes were published and used to substitute five letter groupings for much longer phrases commonly occurring in commercial messages.

The use of codes in digital computers is based on the fact that the computer stores only binary numbers: 0’s and 1’s.  Thus we interpret patterns of 0’s and 1’s as codes for other objects: ASCII code for characters, two’s-complement code for integers, etc.  As we shall see later, the meaning of a collection of binary bits in a computer depends on the context in which the binary bits are fetched from the memory.

One commonly used pattern is that of unsigned binary numbers, in which the bit patterns represent non-negative integers.  In order to understand these numbers, we must recall some arithmetic that we learned early in elementary school – positional notation.

Consider the decimal number 139.  To be precise, this is not a number but a collection of symbols each used to represent a number.  We know that the digit “1” represents the number 1, the digit “3” represents the number 3, and the digit “9” represents the number 9.  The association of the character string “139” with the number 139 is based on positional notation, which states that 139 = 1·100 + 3·10 + 9·1 = 1·102 + 3·101 + 9·100.

The above example assumes decimal (base 10) notation, which is the notation most commonly used by humans for representing integers.  In our studies of digital computers, we must consider not only decimal numbers but also binary (base 2), octal (base 8) and hexadecimal (base 16).  It is conventional to represent the base of every number system as a decimal number.  Any other approach would lead to considerable confusion.

In a positional number system, the value of a string of digits is expressed in terms of powers of the base B.  Consider the four-digit number, denoted in the abstract as D3D2D1D0.  The value of this number is given by D3·B3 + D2·B2 + D1·B1 + D0·B0.  For example, consider the number 1101.  The value of this number depends on the base of the number system.

In decimal notation, we have 1·103 + 1·102 + 0·101 + 1·100 = 1·1000 + 1·100 + 0·10 + 1·1 = 1000 + 100 +1 = 110110.

In octal numbers (base 8), we have
11018   = 1·83 + 1·82 + 0·81 + 1·80
= 1·512 + 1·64 + 0·8 + 1·1               = 57710.

In hexadecimal numbers (base 16), we have
110116  = 1·163 + 1·162 + 0·161 + 1·160
= 1·4096 + 1·256 + 0·16 + 1·1         = 445310.

In binary numbers (base 2), we have
11012   = 1·23 + 1·22 + 0·21 + 1·20
= 1·8 + 1·4 + 0·2 + 1·1                     = 1310.

Common examples of encoders and decoders are based on either two–bit or three–bit arithmetic.  Two bits can encode four numbers, 0 through 3 in unsigned binary.  Three bits can encode eight numbers, 0 through 7 in unsigned binary.  In general, N bits can encode 2N different numbers, 0 through 2N – 1 in unsigned binary.

Binary         Decimal

The two-bit codes are        00                  0
01                  1
10                  2
11                  3

The three-bit codes are      000                 0
001                 1
010                 2
011                 3
100                 4
101                 5
110                 6
111                 7

Multiplexers and Demultiplexers

A multiplexer has a number of inputs (usually a power of two), a number of control signals, and one output.  A demultiplexer has one input signal, a number of control signals, and a number of outputs, also usually a power of two.  We consider here a 2N–to–1 multiplexer and a 1–to–2N demultiplexer.

Circuit           Inputs       Control Signals     Outputs

Multiplexer          2N                     N                      1
Demultiplexer         1                      N                     2N

The action of each of these circuits is determined by the control signals.  For a multiplexer, the output is the selected input.  In a demultiplexer, the input is routed to the selected output.  As examples, we show the diagrams for both a four–to–one multiplexer (MUX) and a

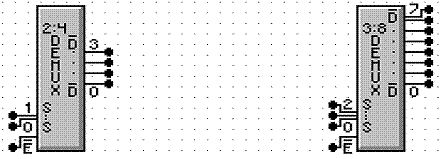

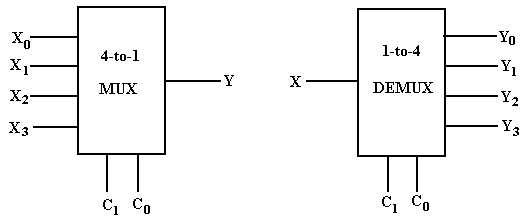

one–to–four demultiplexer (DEMUX). Note that each of the circuits has two control signals.  For a multiplexer, the N control signals select which of the 2N inputs will be passed to the output.  For a demultiplexer, the N control signals select which of the 2N outputs will be connected to the input.

Multiplexers

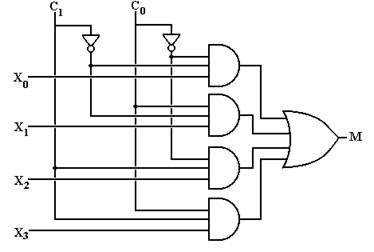

The output for a multiplexer can be represented as a Boolean function of the inputs and the control signals.  As an example, we consider a 4-input multiplexer, with control signals labeled C0 and C1 and inputs labeled I0, I1, I2, and I3.  The output can be described as a truth table or algebraically.  Note that each of the truth tables and algebraic expression shows the input that is passed to the output.  The truth table is an abbreviated form of the full version, which as a table for independent variables C0, C1, I0, I1, I2, and I3 would have 64 rows.

C1     C0           M

0       0             I0

0       1             I1                      M = C1·C0·I0 + C1·C0·I1 + C1·C0·I2 + C1·C0·I3

1       0             I2

1       1             I3

Multiplexers are generally described as 2N–to–1 devices.  These multiplexers have 2N inputs, one of which is connected to the single output line.  The N control lines determine which of the inputs is connected to the output.  Here is a circuit for a 4–to–1 multiplexer.  Note that the inputs are labeled X3, X2, X1, and X0 here and I3, I2, I1, and I0 in the multiplexer equation. Demultiplexer

Demultiplexers are generally described as 1–to–2N devices.  These multiplexers have one input, which is connected to one of the 2N output lines.  The N control lines determine which of the output line is connected to the input.  Here is a circuit for a 1–to–4 demultiplexer, which might be called “active high” in that the outputs not selected are all set to 0.  Note that multiplexers do not have the problem of unselected outputs; a MUX has only one output. Note that, for good measure, we have added an enable–high to the demultiplexer.  When this enable is 0, all outputs are 0.  When this enable is 1, the selected output gets the input, X.  Remember, that X can have a value of either 0 or 1.

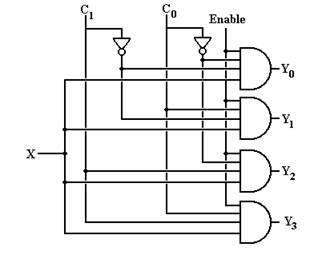

We shall return to demultiplexers after we have discussed decoders.  At that time, we shall note a similarity between the decoders and demultiplexers, consider the use of a decoder as a demultiplexer, and investigate the possibility of an active–low demultiplexer.

We close our discussion of multiplexers and demultiplexers with the two theorems.

Theorem 1:    Any Boolean function of N Boolean variables, N > 0, can be constructed by
a multiplexer with 2N inputs and N control lines, labeled CN-1 … C0.

Proof:  We give as a proof a method for constructing the function.  We then give an example.  The method is as follows:

1.         Connect the N variables to the N control lines CN-1 … C0.  It is generally easier
to connect the control lines in order of the variables listed; thus for F(X, Y, Z) we
would connect X to C2, Y to C1, and Z to C0.  This is merely a convenience.

2.         Write the multiplexer equation in terms of the input variables; thus for F(X, Y, Z),
we write the multiplexer equation as 3.         Write the Boolean function in Canonical Sum of Products form.  If the variables
have been properly associated with the control lines, the terms in the Canonical
SOP should be in the same order as the terms in the multiplexer equation.

4.         Match the function F(X, Y, Z) to the multiplexer.  If a product term appears in
the Boolean function, set the input to 1.  Otherwise set the input to 0.

Example:  Consider the function F2 = X·Y + X·Z + Y·Z, which we have identified as the carry-out of a full adder with inputs X, Y, and Z.

We begin by connecting the variables to control lines in the suggested order.  Connect X to C2, Y to C1, and Z to C0; thus C2 = X, C1 = Y, and C0 = Z.

Writing the multiplexer equation in terms of the input variables, we get: We now write the Boolean function in Canonical Sum of Products form. In the S–list form we say F2 = S(3, 5, 6, 7).

The final step is to assign the inputs:
I0 = 0               I1 = 0               I2 = 0               I3 = 1
I4 = 0               I5 = 1               I6 = 1               I7 = 1.

We now show the design, again using X0 through X7 as labels for inputs. This figure suggests a simpler way to design with multiplexers using this theorem.

1)   Force the expression into a canonical SOP expression.
2)   Write the canonical SOP expression as a S list
3)   Connect the multiplexer inputs corresponding to numbers in the list to 1.
4)   Connect the other inputs to 0.

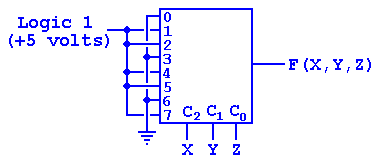

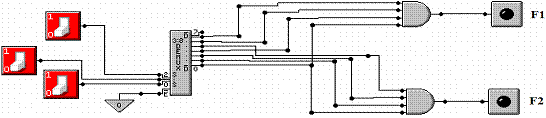

Above, the design shows the implementation of F(X, Y, Z) = S(3, 5, 6, 7).  Note that inputs
3, 5, 6, and 7 are connected to logic 1; the others are connected to logic 0.

There are also two ways to implement an expression in POS.  For each method we force the expression into canonical POS.  We can then do one of two things: convert to canonical SOP and implement as above, or use the POS list as a list of inputs to set to 0; thus

1)   Connect the multiplexer inputs corresponding to numbers in the P list to 0.
2)   Connect the other inputs to 1.

Above, the design shows the implementation of the same function F(X, Y, Z) = S(3, 5, 6, 7), now called F(X, Y, Z) = P(0, 1, 2, 4).  Note that inputs 0, 1, 2, and 4 are connected to logic 1; the others are connected to logic 0.

We close the discussion of this theorem with a remark on logical complexity as opposed to physical complexity.  The logical complexity of a circuit is most readily expressed in the number of logic gates in the circuit.  An alternate measure would be the maximum number of gates between any input and the output; this would determine the time delay of the circuit.

What might be called the “physical complexity” of a circuit is best measured in the number of physical chips that we use.  Consider our function F1(X, Y, Z) = S(1, 2, 4, 7).  As we shall see later, direct implementation with basic gates requires three NOT gates, four 3–input AND gates, and a 4–input OR gate.  This requires four chips: one 6–input NOT chip, two triple

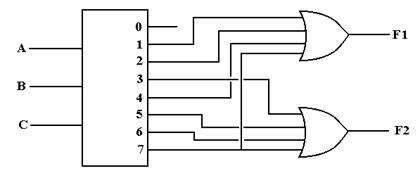

3–input AND chips and one double 4–input OR chip.

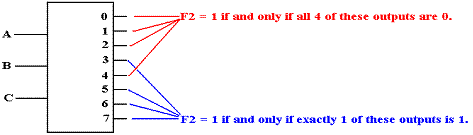

As we shall see below, this may be fabricated from a 3–to–8 decoder and one double 4–input OR chip, for a total of two chips.  We have just seen the fabrication with a 8–to–1 multiplexer, a total of one chip.  Physically, the last design is the simplest.

For all of these designs we assume that the control inputs have been set in the correct order.

We now consider another way to design with multiplexers.  This method is a bit more complex, and thus should be used less often.  In this author’s view, it is less important.
However, your author cannot resist the impulse to impart knowledge, so here it is.

Theorem 2:    Any Boolean function of (N + 1) Boolean variables, N > 0, can be constructed
by a multiplexer with 2N inputs and N control lines.

Proof:  We give as a proof a method for constructing the function.  We then give an example.  The method is as follows:

1.         Connect any N variables to the control lines.  This leaves one variable unconnected.

2.         Express the Boolean function in normal SOP form.  Each term must have a literal for
each of the N variables that are connected to the control lines and may contain the
other one.  Put another way, each of the 2N product terms possible on the N variables
attached to the control lines must be included in a term in this expression.

3.         Connect the remaining variable, its complement, 0, or 1 to the 2N input lines.

4.         Match the terms.

Example:

Consider the function F2 = A·B + A·C + B·C, which we have identified as the carry-out of a full adder with inputs A, B, and C.  Arbitrarily, we connect A and B to the control lines.

This implies that each of the terms in F2 must contain both A and B, either in complemented or plain form.  To get this, we use some algebra to expand the last two terms.

F2     = A·B + A·C + B·C

= A·B + A·(B + B’)·C + (A + A’)·B·C

= A·B + A·B·C + A·B’·C + A·B·C + A’·B·C

= A·B + A·B·C + A·B·C + A·B’·C + A’·B·C

= A·B + A·B·C + A·B’·C + A’·B·C                   as X + X = X
= A
·B·(1 + C) + A·B’·C + A’·B·C
= A
·B + A·B’·C + A’·B·C                                   as 1 + C = 1 for all C.

Note that the form produced is not canonical as the first term is lacking a C.  It is, however, in the required sum of products form.  To complete the construction, we rewrite F2 and match it against the multiplexer equation for a 4-input multiplexer.

F2           = A’·B’·0       + A’·B·C        + A·B’·C     + A·B·1

M            = C1·C0·I0    + C1·C0·        + C1·C0·I2  + C1·C0·I3

The match-up is C1 = A, C0 = B, I0 = 0, I1 = C, I2 = C, and I3 =1.

With these inputs, the multiplexer has synthesized the function F2.

Decoders and Encoders

We now consider an important class of commercial circuits – encoders and decoders.  These perform the functions suggested by the corresponding decimal-binary conversions.  In conversion of a decimal number to binary, we obtain the binary equivalent of the number.  An encoder has a number of inputs, usually a power of two, and a set of outputs giving the binary code for the “number” of the input.

Encoders

Consider a classic 2N–to–N encoder.  The inputs are labeled I0, I1, …, IK, where K = 2N – 1.  The assumption is that only one of the inputs is active; in our way of thinking only one of the inputs is 1 and the rest are 0.  Suppose input J is 1 and the rest are 0.  The output of the circuit is the binary code for J.  Suppose a 32–to–5 encoder with input 18 active.  The output Z is the binary code 10010; Z4 = 1, Z3 = 0, Z2 = 0, Z1 = 1, and Z0 = 0.

Common encoders include 8–to–3, 16–to–4, and 32–to–5.  One common exception to the rule of 2N–to–N is a 10–to–4 encoder, which is used because decimal numbers are so common.  Note that three binary bits are not sufficient to encode ten numbers, so we must use four bits and not produce the outputs 1010, 1011, 1100, 1101, 1110, or 1111.

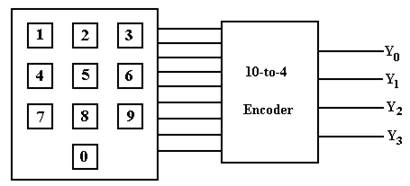

We now present a detailed discussion and a design of a 10-to-4 encoder.  We begin with a diagram that might illustrate a possible use of an encoder. In this example, the key pad has ten keys, one for each digit.  When a key is pressed, the output line corresponding to that key goes to logic 1 (5 volts) and the other output lines stay at logic 0 (0 volts).  Note that there are ten output lines from the key pad, one for each of the keys.  These ten output lines form ten input lines into the 10to4 encoder.

The 10to4 encoder outputs a binary code indicating which of the keys has been pressed.  In a complete design, we would require some way to indicate that no key has been pressed.  For our discussion, it is sufficient to ignore this common case and assume that a key is active.

We first ask why we need four bits for the encoder.  N bits will encode 2N different inputs.  As a result, to encode M different items, we need N bits with 2N–1 < M £ 2N.  To encode 10 inputs, we note that 23 < 10 £ 24, so we need 4 bits to encode 10 items.

We now present a table indicating the output of the encoder for each input.  In this example, we assume that at any time exactly one input is active.

 Input Y3 Y2 Y1 Y0 X0 0 0 0 0 X1 0 0 0 1 X2 0 0 1 0 X3 0 0 1 1 X4 0 1 0 0 X5 0 1 0 1 X6 0 1 1 0 X7 0 1 1 1 X8 1 0 0 0 X9 1 0 0 1

In the table at left, we label the inputs X0 through X9, inclusive.  To produce the equations for the outputs, we reason as follows.

Y3 is 1 when either X8 = 1 or X9 = 1.

Y2 is 1 when X4 = 1 or X5 = 1 or X6 = 1 or X7 = 1.

Y1 is 1 when X2 = 1, X3 = 1, X6 = 1, or X7 = 1.

Y0 is 1 when X1 = 1, X3 = 1, X5 = 1, X7 = 1, or X9 = 1.

These observations lead to the following equations, used to design the encoder.

Y3 = X8 + X9
Y2 = X4 + X5 + X6 + X7
Y1 = X2 + X3 + X6 + X7
Y0 = X1 + X3 + X5 + X7 + X9

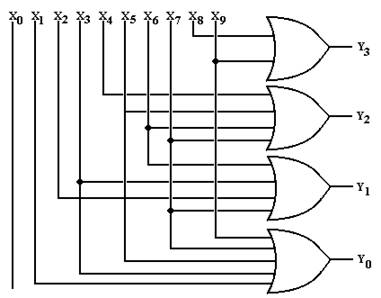

Here is the circuit for the 10-to-4 encoder. The student will note that input X0 is not connected to an output.  This gives rise to the following problem for the circuit: how does one differentiate between X0 being active and no input being active.  That might be a problem for real encoder design.

The most straightforward modification of the circuit would be to create the logical OR of the ten inputs and pass that signal as a “key pressed” signal.  We mention this only to show that some applications must handle this case; we shall not consider it further in this course.

Another issue with encoders is what to do if two or more inputs are active.   For ‘plain” encoders the output is not always correct; for example, in the above circuit with inputs X3 and X5 active would output Y3 = 0, Y2 = 1, Y1 = 1, and Y0 = 1.

Priority encoders are designed to avoid the problem of multiple inputs by implementing a priority order on the inputs and producing the output for the input that has priority.
For example, in a 32-to-5 priority encoder, having inputs 18 and 29 active would produce either the binary code 10010 (for 18) or 11101 (for 29), depending on the priority policy, and not the output 11111 that a plain encoder would produce.

Decoders

An N–to–2N decoder does just the opposite, taking an N bit binary code and activating the output labeled with the corresponding number.  Consider a 4–to–16 decoder with outputs labeled Z0, Z1, …, Z15.  Suppose the input is I3 = 1, I2 = 0, I1 = 0, and I0 = 1 for the binary code 1001.  Then output Z9 is active and the other outputs are not active.

Again, the main exception to the N–to–2N rule for decoders is the 4–to–10 decoder, which is a common circuit.  Note that it takes 4 bits to encode 10 items, as 3 bits will encode only 8.  This author’s preference would be to use a 4–to–16 decoder and ignore some of the outputs, but this author does not establish commercial practice.  The main advantage is that the
4–to–10 decoder chip would have 6 fewer pins than a 4–to–16 decoder; a 16–pin chip is standard and cheaper to manufacture than a 22–pin chip.

Another issue is whether the signals are active high or active low.  Our examples have been constructed for active high circuits.  Consider the 4–to–16 decoder as an example.  If the input code is 1001, then the output Z9 is a logic 1 (+5 volts) and all other outputs are logic 0
(0 volts).  This approach is active high.  In real commercial circuits, we often have outputs as active low, in which case the above decoder would have output Z9 as a logic 0 (0 volts) and all other inputs as logic 1 (+5 volts).  This reflects an issue with design using real TTL circuits or with standard circuit emulators, such as MultiSim or Multi–Media Logic.

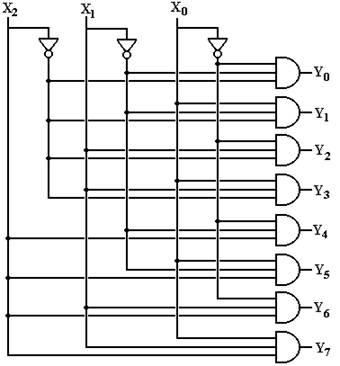

Decoders have N inputs and 2N outputs.  We consider a 3to8 decoder; thus N = 3.  The design that we present will assume that the decoder is active high; again that the selected output becomes logic 1 (5 volts) and the others remain at logic 0 (ground or 0 volts).

 Decimal Binary 0 000 1 001 2 010 3 011 4 100 5 101 6 110 7 111

The decoder is based on the association of binary numbers to decimal numbers, as is shown in the figure at right.  Since this is a 3to8 decoder, we have three inputs, labeled X2, X1, and X0; and eight outputs, labeled Y7, Y6, Y5, Y4, Y3, Y2, Y1, and Y0.

The observation that leads to the design of the decoder is the obvious one that the values of X2, X1, and X0 determine the output selected.  For this part of the discussion, I choose to ignore the enable input.

We introduce the Enable output in a later discussion.

The following Boolean equations determine the 3to8 decoder. Here is the circuit diagram for the 3to8 active–high decoder. # The Enable Input

We now consider another important input to the decoder chip.  This is the enable input.  If the decoder enable signal is active high, then the decoder is active when enable is 1 and not active when enable = 0.  We shall consider enabled-high decoders here.

The enable input allows the decoder to be either enabled or disabled.  For an active high decoder that is enabled high (Enable = 1 activates it) we have the following.

Enable = 0       All outputs of the decoder are 0
Enable = 1       The selected output of the decoder is 1, all other outputs are 0. One way to express the effect of the enable input is to use a modified truth table.

Enable   X1   X0      Y0   Y1   Y2   Y3
0         d      d        0     0     0     0
1         0      0        1     0     0     0
1         0      1        0     1     0     0
1         1      0        0     0     1     0
1         1      1        0     0     0     1

Thus, all outputs are 0 when the enable input is 0.  This is true without regard to the inputs.  When the enable input is 1, the outputs correspond to the inputs.

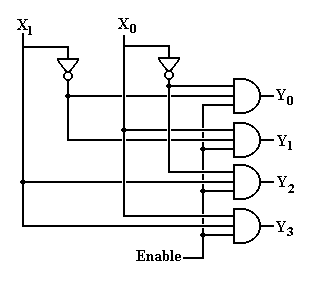

Here is a circuit diagram for a 2to4 decoder that is enabled high and active high. Note that the Enable input is passed as an input to all four of the AND gates used to produce the output of the decoder.  As a result, when Enable = 0, all of the outputs are 0; the decoder is not active.

When Enable = 1 in the above circuit, the other two inputs X1 and X0 will determine the one of the four outputs is set to 1; the others remaining 0.  This is exactly how the active-high decoder should function.

The following example illustrates the use of the enable input for decoders.  We use two
two-to-four decoders to construct a single three-to-eight decoder.  The way to do this is to use one of the inputs, conventionally the high-order bit, as an enable signal.  This way one of the two-to-four decoders will be enabled and one will not be.  Here is the circuit. Suppose the three-to-eight decoder is enabled.  Under this assumption, the input I2 selects the two–to–four decoder that is active.  It I2 = 0, then the top decoder is active and the bottom decoder is not active (all its outputs are 0).  It I2 = 1, then the bottom decoder is active and the top decoder is not active (all its outputs are 0).  In either case, the inputs I1 and I0 are passed to both two-to-four decoders.

When I2 = 0, the inputs I1 and I0 select which of outputs Y0, Y1, Y2, or Y3 in the top two-to-four decoder is active and thus which of Z0, Z1, Z2, or Z3 is active.

When I2 = 1, the inputs I1 and I0 select which of outputs Y0, Y1, Y2, or Y3 in the bottom two-to-four decoder is active and thus which of Z4, Z5, Z6, or Z7 is active.  Thus we have constructed the equivalent of a three-to-eight decoder.

The Active–Low, Enabled–Low Decoder

We now examine a decoder designed according to standard commercial practice.  This decoder is active–low and enabled–low.

The enable input allows the decoder to be either enabled or disabled.  For a decoder that is enabled low (Enable = 0 activates it) we have the following:
Enable = 1     None of the outputs of the decoder are active.
Enable = 0     Only the selected output is active; all others are inactive.

For a decoder that is enabled–low and active–low, we have the following:
Enable = 1     All outputs are 1; no output is active.
Enable = 0     Only the selected output has value 0 (active);
all others have value 1 (inactive).

One way to express the effect of the enable input is to use a modified truth table.  Here we examine a 2–to–4 decoder that is enabled–low and active–low.

Enable   X1   X0      Y0   Y1   Y2   Y3
1         d      d        1     1     1     1
0         0      0        0     1     1     1
0         0      1        1     0     1     1
0         1      0        1     1     0     1
0         1      1        1     1     1 We may immediately deduce the decoder equations

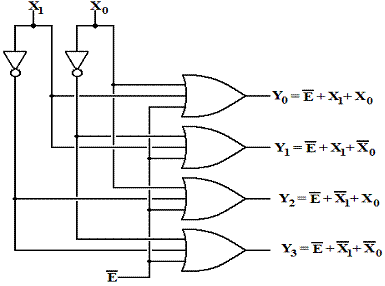

from the truth table just above.  Here they are. Here is the circuit diagram for a 2–to–4 decoder that is active low and enabled low. We now repeat an earlier design, this time with decoders that are enabled–low.  We use two

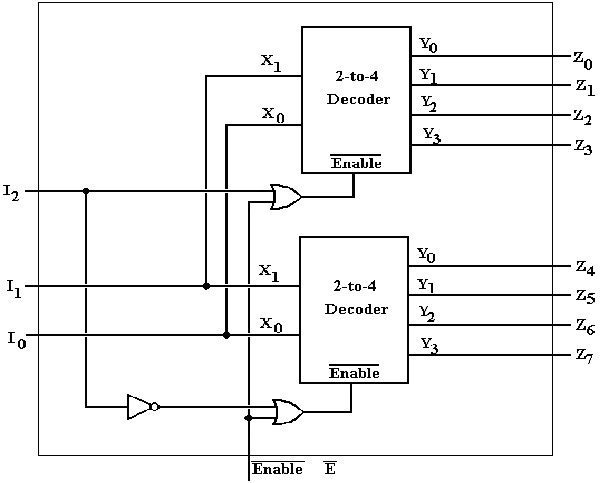

two–to–four decoders (active low and enabled low) to construct a single three–to–eight decoder, that is also active low and enabled low.  The way to do this is to use one of the inputs, conventionally the high–order bit, as an enable signal.  This way one of the 2–to–4 decoders will be enabled and one will not be.  Here is the circuit. Suppose that the 3–to–8 decoder is disabled; = 1.  Then, each of the 2–to–4 decoders is also disabled and all outputs are logic 1.  This is as it should be.

Suppose the 3–to–8 decoder is disabled; = 0.  Under this assumption, the input I2 selects the 2–to–4 decoder that is active.  It I2 = 0, then the top decoder is active (with its Enable set to 0) and the bottom decoder is not active (with its Enable set to 1).  It I2 = 1, then the bottom decoder is active (its Enable = 0) and the top decoder is not active (its Enable = 1).  In either case, the inputs I1 and I0 are passed to both 2–to–4 decoders.

When I2 = 0, the inputs I1 and I0 select which of outputs Y0, Y1, Y2, or Y3 in the top 2–to–4 decoder is active and thus which of Z0, Z1, Z2, or Z3 is active.

When I2 = 1, the inputs I1 and I0 select which of outputs Y0, Y1, Y2, or Y3 in the bottom
2–to–4 decoder is active and thus which of Z4, Z5, Z6, or Z7 is active.  Thus we have constructed the equivalent of a 3–to–8 decoder.

There is an equivalence between decoders and demultiplexers that many students notice.  Consider a 1–to–2N demultiplexer with N control signals, under the assumption that the selected output copies the input and the other outputs are set to the logic value considered inactive.  The demultiplexer may be considered either as “active high”, with the inactive outputs set to logic 0, or “active low”, with the inactive outputs set to logic 1

Consider the “active high” demultiplexer.  We then set the input (labeled “Enable” in the diagram) to logic 1 and note that the output selected by the control signals is logic 1 while the other outputs are logic 0.  When the input (“Enable”) is set to logic 0, all of the outputs are logic 0.  We have converted the demultiplexer into an active–high decoder.

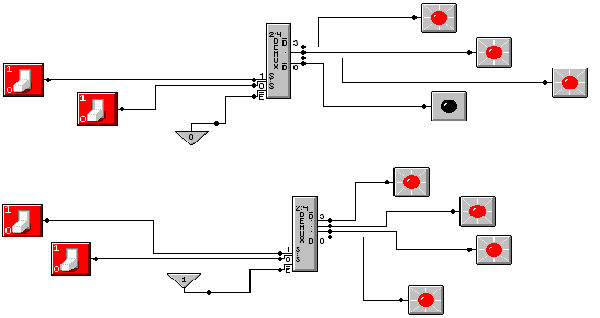

The following figure shows a 1–to–4 demultiplexer used as a 2–to–4 decoder. Note that the input to the circuit acting as a decoder is labeled X1 and X0.  This input is placed into the control inputs of the demultiplexer, indicating which output should receive the input, set to the decoder enable signal.  When Enable = 0, all of the outputs are 0, as required for the decoder.

When Enable = 1, the X1 X0 input selects which output becomes 1 while the other outputs remain at 0. This makes the DEMUX so configured to be functionally equivalent to a 2–to–4 decoder.

We now note a confusing usage in commercial chips, as seen in the Multi–Media Logic tool.
The following chips are labeled demultiplexers; the one on the left called a 2–to–4 DEMUX and the one on the right called a 3–to–8 DEMUX. In reality, each of these is an active–low, enabled–low decoder.  In each, if = 1, all of the outputs are logic 1.  In each, if = 0, the selected output is logic 0 and the rest are logic 1.

It is easy to see that each of the above may be used as an “active low” demultiplexer.  Think of the input as input to the demultiplexer.  What we have is as follows:
If = 1, all outputs are logic 1 (inactive).
If = 0, the selected output is logic 0 and the other outputs are logic 1.

In either case, the selected output has the value of the input.

# Implementation of SOP expressions with decoders

We now consider the use of decoders as elements in a circuit.  We first discuss active–high decoders for this design, although they are rarely used in commercial circuits.  For such encoders, the design calls for use with OR gates to implement a function expressed in canonical SOP form.

We now give two examples of circuit design with decoders.  Recall two functions specified by truth tables.

## A B C F1 F2

0 0 0  0  0

0 0 1  1  0

0 1 0  1  0

0 1 1  0  1

1 0 0  1  0

1 0 1  0  1

1 1 0  0  1

1 1 1  1  1

We use an active–high decoder to implement these two functions.

Each of the two functions is represented in the truth table in a way that can easily be converted into canonical SOP form.  F1 can be seen as the sum of canonical product terms
1, 2, 4, and 7.  F2 can be seen as the sum of the canonical product terms 3, 5, 6, and 7.  In the standard notation, we say F1 =
S(1, 2, 4, 7) and F2 = S(3, 5, 6, 7).

The circuit to the right of the truth table shows the use of an active-high positive logic 3-to-8 decoder and an OR gate to synthesize each of the functions F1 and F2.  The method for each function is the same.  First represent the function in the canonical SOP list form and then connect each of the indicated outputs from the decoder to the OR gate for the function.

To synthesize F1 = S(1, 2, 4, 7) we connect the outputs 1, 2, 4, and 7 from the decoder to the OR gate for F1.  The output of this OR gate is F1.

Basis of the Designs
The design above is quite straightforward.  Start with an active–high decoder and the S–list canonical representation of the function.  Attach the outputs listed in the S–list to an OR gate.  Your author would like, at this moment, to develop the logical basis of this strategy.

In the discussion below we shall consider design with both Active–High decoders and Active–Low decoders.  It is hoped that this intuitive discussion will assist the reader to understand not only decoders themselves but also their use in the generation of arbitrary Boolean functions.

As always in our design examples, we select a function that would better be implemented by a much simpler circuit.  The goal here is to present the method, not develop a clever design.  The function to be implemented is one of the two that we have been discussing at some length in this and previous chapters: F2 = S(3, 5, 6, 7) = P(0, 1, 2, 4).

This function displays the unusual symmetry that there are 4 terms in both its SOP and POS expressions.  All of our designs will use some sort of 4–input gate to combine the output of some sort of 3–to–8 decoder.

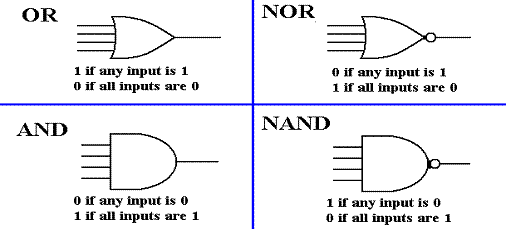

We begin by characterizing a number of basic gates.  For the purpose of illustration, we examine 4–input gates.  What is said is true for any number of inputs to these gates. We now consider an active high decoder.  For this and other examples, we assume that the decoder has been enabled; else all of its outputs are 0.  An active high decoder outputs logic 1 for its selected output and logic 0 for the outputs not selected.  For F2, we have: Seeking a gate that outputs 1 if at least one of its inputs is 1, we are led to the OR gate. Seeking a gate that outputs 1 only if all its inputs are 0, we are led to the NOR gate. We now consider an active low decoder.  For this and other examples, we assume that the decoder has been enabled; else all of its outputs are 1.  An active high decoder outputs logic 0 for its selected output and logic 1 for the outputs not selected.  For F2, we have: Looking for a gate that outputs 0 if all of its inputs are logic 1 and outputs logic 1 if at least one of its inputs is logic 0, we find the NAND gate. Looking for a gate that outputs 1 if and only if all of its inputs are 1, we find the AND gate. Implementation of POS Expressions with Decoders

We have a number of options, the first of which is the most common.  Just convert the expression to Sum of Products and continue.

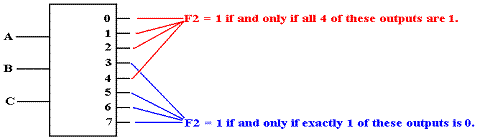

Thus, if we are given F2(A, B, C) = P(0, 1, 2, 4), we just convert the expression to
F2(A, B, C) =
S(3, 5, 6, 7) and continue with our work.  Remember that the numbers in a canonical expression on N variables run from (0 through 2N – 1).  The number is in the
Slist if and only if it is not in the P–list.  The discussions above actually indicate how to construct the circuits directly from a canonical expression.

We note here that almost all commercially available decoders are active–low.  Those in our lab are active–low.  It is that fact that is one of the reasons for this long discussion.

Design Summary: Decoder Type and Expression

Active High, SOP      Attach the specified outputs as input to an OR gate.
Example:         F2(A, B, C) =
S(3, 5, 6, 7) Active High, POS      Attach the specified outputs as input to a NOR gate
Example:         F2(A, B, C) =
P(0, 1, 2, 4) Active Low, SOP       Attach the specified outputs as input to a NAND gate
Example:         F2(A, B, C) =
S(3, 5, 6, 7) Active Low, POS       Attach the specified outputs as input to an AND gate.
Example:         F2(A, B, C) =
P(0, 1, 2, 4) Interlude: More Designs with Multi–Media Logic.

The first design shows two experiments with a 2–to–4 enabled–low, active–low decoder, which Multi–Media Logic labels as a “2:4 DEMUX”.  In the top figure, we have = 0 and the selected output is set to logic 0 (seen by the LED being off).  In the bottom figure, we have = 1, and none of the outputs are active.  Each output is logic 1, as seen by the corresponding LED being illuminated.

Often, experiments such as this set are the only way to determine the real behavior of a circuit element. Here is an implementation of our two functions F1 = P(0, 3, 5, 6) and F2 = P(0, 1, 2, 4) that uses an active high 3–to–8 decoder and two 4–input AND gates. As we shall see in the section immediately following, these two functions (F1 and F2) have more common names that correspond to their standard usage in computers.

We now investigate the design of a full adder.  A full-adder is specified by its truth table.

 A B C Sum Carry 0 0 0 0 0 0 0 1 1 0 0 1 0 1 0 0 1 1 0 1 1 0 0 1 0 1 0 1 0 1 1 1 0 0 1 1 1 1 1 1

A full adder circuit adds two bits (A and B) with a carry-in C.

It produces two outputs the Sum and the Carry our to the next

higher stage.  Here we elect to translate the truth table to two

Sum of Products expressions and implement the Sum and Carry

using AND-OR logic.

SUM      = A’·B’·C + A’·B·C’ + A·B’·C’ + A·B·C

CARRY = A·B + A·C + B·C (this has been simplified).

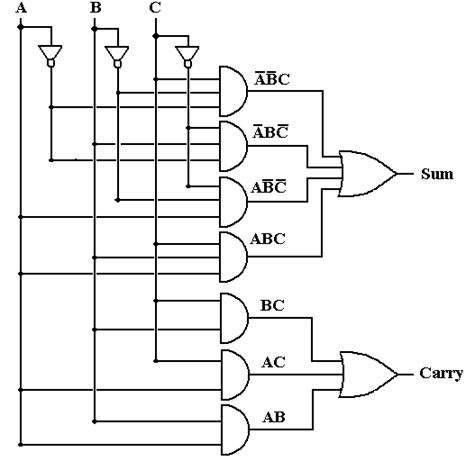

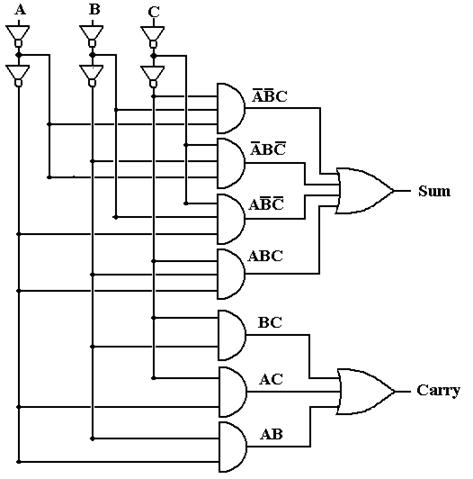

Here is one design of a Full-Adder using the basic Boolean gates. As an aside, we show a more conventional variant of the full adder circuit, one that is designed to address the “fan-out” problem.  Consider the input labeled A in either circuit.  It must be generated by another circuit element that is capable of delivering input to only a limited amount of gates.  In the first circuit, the source of the signal A must drive five gates: the NOT gate producing A’ and the AND gates producing A·B’·C’, A·B·C, A·B, and A·C.  The circuit below is a common variant in which each of the A, B, and C inputs is driving only one gate – the first NOT gate of the double inverter pair.  Such a design provides for a standard input load for the circuit and facilitates its use in design. Gate Delays and Timing Analyses

At this point, we move on to creating a “ripple carry” adder, which is a simple collection of a number of full adders to generate the sum of two multi-bit integers.  In order to undertake this design, we must first do a rough timing analysis of the full adder.

Consider the three basic gates from which a full adder is built.  We normally do not consider the time delay for producing the output, but consider the circuit only after all transients have disappeared.  However, there are occasions upon which we must consider the fact that the output of a given logic gate does not change immediately with the input, but only after a short time delay, called the “gate delay”.

Each gate introduces a delay and produces its output only after the delay.  This delay is unique to the gate type and method of manufacture; thus an AND gate would display a gate delay different from that of a NOT gate.  For simplicity, we just assume that all gates have the same delay, normally in the range 1 – 5 nanoseconds.  We may note that the gates used in commercial microprocessors are etched onto the CPU chip and have gate delays that are considerably less, probably on the order of 100 picoseconds (0.10 nanoseconds).

In order to explain, consider three basic gates, each of which has its input change at T = 0. We begin our analysis at a time called T = – 1, and assume that the inputs have been stable for some time.  At this time, the gate outputs are exactly what we expect. At T = 0, the inputs to each gate suddenly change.  Note that the outputs of the gates have not yet changed, as the change has yet to propagate through each gate. At T = 1, by definition one gate delay after each input has changed, the outputs of each of the three gates finally reflects the changed inputs and the circuits again display the expected results.  This is an example of the effect of gate delays – the changes in input gradually propagate through the circuit, with the output of a gate at T = K depending on its input at the previous time T = K – 1.

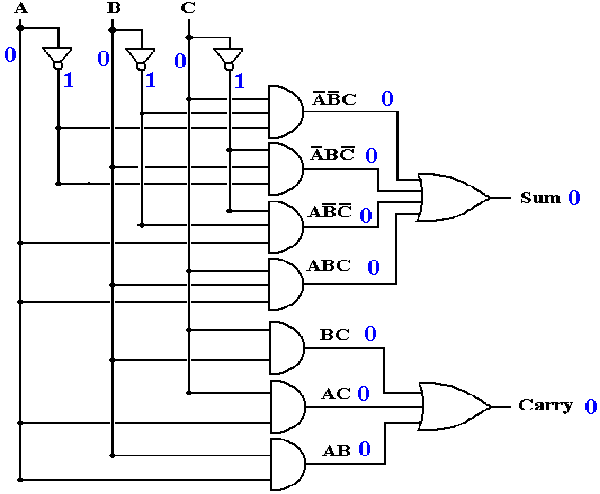

Before the Input Changes

We now consider a timing analysis of the first version of the full adder (the one without the double not gates).  Suppose at T = 0, the input changes from A = 0, B = 0, C = 0 to
A = 1, B = 0, C = 1.  We begin at T = – 1, at which time the inputs have been stable for some time, so that all values in the circuits follow what would be expected from the Boolean equations for the SOP expressions of the Sum and Carry-Out. Figure: The Situation before Any Input Change

The Input Changes

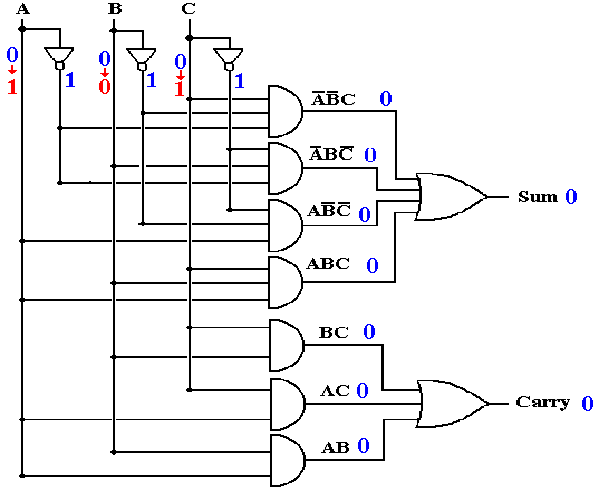

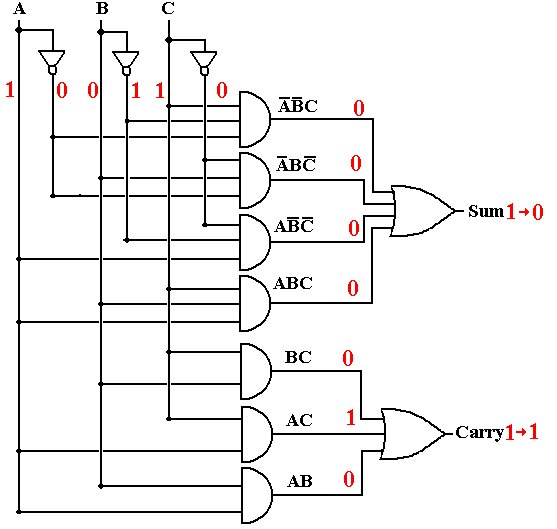

At T = 0 the input changes suddenly to A = 1, B = 0, C = 1.  The situation is shown below.  The new inputs are shown in RED, but note that none of the gate outputs (shown in BLUE) have yet changed.  The change has not propagated through the gates and the circuit might be considered to be in a logically inconsistent state. Figure:  The Circuit at T = 0, the Instance of Input Change

Author’s note: At this point, the only way to avoid confusion is to show both the previous value and current value of a changed input.  The gate outputs, shown in blue, still depend on the old values and have not reacted to the new values.

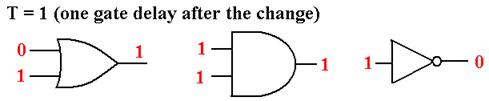

After One Gate Delay

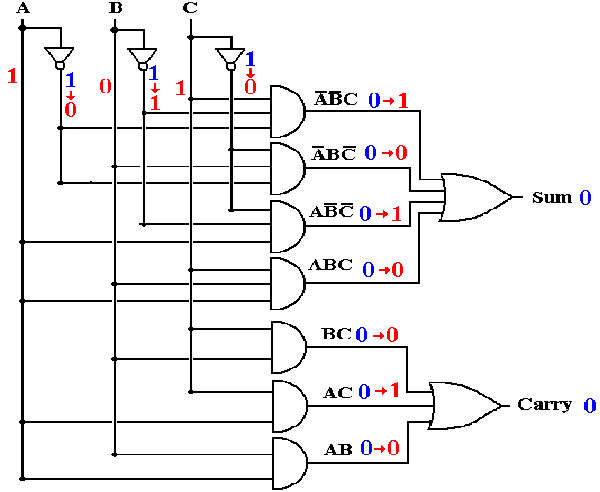

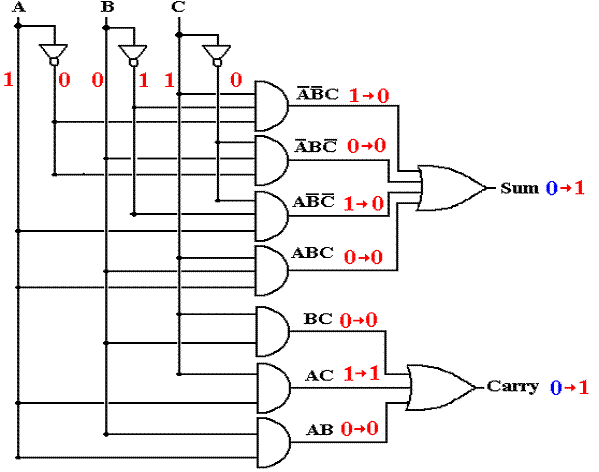

After one gate delay, the output of the gates that receive the input directly have changed, but the outputs of the gates one or more steps removed from the input have not changed.  Again, the changed values are shown in RED, while the unchanged values are shown in BLUE.  Note the notation OLD ® NEW, used in an attempt to avoid confusion in understanding the input to the AND gates, which are still responding to the status at T = 0. Figure: The Full Adder after One Gate Delay

Note the output of the top AND gate.  At T = 0, the value of C has changed to 1, but the value of A’ and B’ are still 1, so we have A’ = 1, B’ = 1, and C = 1.  The output of A’·B’·C at T = 1 depends on these values, which have changed from A’ = 1, B’ = 1, and C = 0; thus the value of A’·B’·C changes from 0 to 1.  We note that the value will change again.

After Two Gate Delays, the Carry-Out is Correct Figure: The Full Adder after Two Gate Delays

After two gate delays, the effect of the input change has moved through all of the AND gates and the OR gate for the generation of the Carry-Out, which is now correct.  Note that the SUM output has changed to 1, a result of the values of A’·B’·C and A·B’·C’ at T = 1.

After Three Gate Delays, the Output is Stable

After three gate delays, the output has changed to reflect the new input. The progress of the change in the circuit is summarized in the table below.

 T A B C A’ B’ C’ A’B’C A’BC’ AB’C’ ABC S AB AC BC CO -1 0 0 0 1 1 1 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 0 0 0 0 0 0 0 0 0 1 1 0 1 0 1 0 1 0 1 0 0 0 1 0 0 2 1 0 1 0 1 0 0 0 0 0 1 0 1 0 1 3 1 0 1 0 1 0 0 0 0 0 0 0 1 0 1

The circuit above shows a full adder that takes two one-bit numbers and a one-bit carry-in and produces a one-bit sum and a one-bit carry-out.  One bit adders might be cute, but our design will require a 32-bit adder/subtractor.  Let’s extend this design.

The first step in the extension is to make a 32-bit ripple-carry adder.  The significance of the term “ripple carry” will become obvious soon.  The design of such an adder would be rather messy, so we here present a 4-bit ripple-carry adder.  Such an adder is made from four full adders.  The circuit, shown below, adds two four bit numbers A3A2A1A0 and B3B2B1B0. Note that FA0 has C0 º 0, as the carry-in input is grounded.  This effectively reduces the full adder to a half adder.  The reason for keeping FA0 as a full adder will become apparent soon.

Let FA0 be the full adder taking in A0, B0, and C0 (C0 = 0) to produce the sum S0 and
carry-out C1.  If all input is at T = 0, FA0 produces C1 at T = 2 and S0 at T = 3.  But FA1 cannot produce correct output until C1 is correctly set by FA0.  Thus FA1 produces C2 at
T = 4 and S1 at T = 5.  In general, one can show the following.

Full adder FAK gets its input correct at time T = 2·K.

Full adder FAK produces a correct carry-out at time T = 2·K + 2.

Full adder FAK produces a correct sum at time T = 2·K + 3.
The correct answer “ripples” through the adder as the carry bits become correct.

Before we develop the 32-bit ripple-carry adder/subtractor, we must note that no modern computer uses a ripple-carry adder, as such devices are far too slow.  We are talking about producing a 32-bit sum after 65 gate delays, approximately 130 nanoseconds.  Real adders use a trick called “carry-look-ahead” in which the carry into higher order adders is computed in a more complex, but much more time-efficient manner.

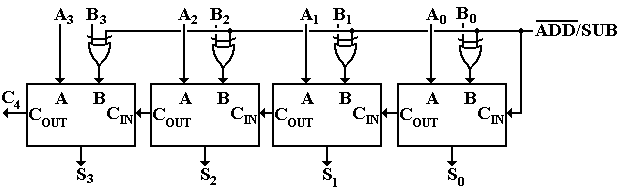

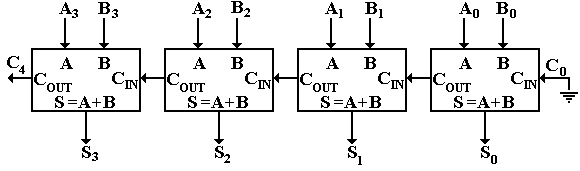

We now consider the construction of a subtractor, again using a 4-bit unit for illustration.  We use a feature of two’s-complement arithmetic that mimics true arithmetic in that subtraction can be implemented as addition of the negative: A – B = A + (– B).  But recall that negation in the two’s complement system is achieved by taking the one’s-complement (bitwise logical NOT) and adding 1, so A – B = A + + 1.  This suggests a design for a subtractor, which we develop only for a single bit unit. This is interesting, but we want an adder/subtractor.  Such a circuit is achieved by recalling an interesting property of the XOR function:  0 Å B = B and 1 Å B = .  This observation allows us to design an adder/subtractor controlled by the signal . When = 0, this circuit adds the two 4-bit integers A and B.  When = 1, this subtracts the 4-bit integer B from the 4-bit integer A.  Thus we have the desired circuit, which can easily be extended to thirty two bits.  Again, a real adder/subtractor will be fabricated using look-ahead technology, but the above circuit is logically correct.

Arithmetic Overflow – “Busting the Arithmetic”

We continue our examination of computer arithmetic to consider one more topic – overflow.  Arithmetic overflow occurs under a number of cases:

1)         when two positive numbers are added and the result is negative
2)         when two negative numbers are added and the result is positive
3)         when a shift operation changes the sign bit of the result.

In mathematics, the sum of two negative numbers is always negative and the sum of two positive numbers is always positive.  The overflow problem is an artifact of the limits on the range of integers and real numbers as stored in computers.  We shall consider only overflows arising from integer addition.

We consider only two’s-complement arithmetic.  The textbook considers only 32-bit numbers, but we use 16-bit numbers as allowing simpler examples.  For two’s-complement arithmetic, the range of storable integers is as follows:

16-bit        – 215 to 215 – 1      or               – 32768      to                  32767

32-bit        – 231 to 231 – 1      or     – 2147483648      to        2147483647

The bits in an integer are numbered from left (most significant) to right (least significant), with the most significant bit having the highest number*.  The bits are numbered 31 to 0 for 32-bit numbers, 15 to 0 for 16 bit numbers, and 7 to 0 for 8–bit numbers.  In the standard integer notation, the most significant (left–most) bit is the sign bit; for 32–bit arithmetic bit 31 is the sign bit, and for 16–bit arithmetic the sign bit is bit 15.

Overflow in addition occurs when two numbers, each with a sign bit of 0, are added and the sum has a sign bit of 1 or when two numbers, each with a sign bit of 1, are added and the sum has a sign bit of 0.  For simplicity, we consider 16–bit addition.  As an example, consider the sum 24576 + 24576 in both decimal and binary.  Note that 24576 = 16384 + 8192 = 214 + 213.

24576               0110 0000 0000 0000
24576               0110 0000 0000 0000
– 16384               1100 0000 0000 0000

Note that, as unsigned addition, the binary value is correct.  However, in 16–bit arithmetic, bit 15 is the sign bit.  We have two positive numbers (bit 15 is 0) giving rise to a negative sum (bit 15 is 1).  This is an example of overflow.

In fact, 24576 + 24576 = 49152 = 32768 + 16384.  The overflow is due to the fact that the number 49152 is too large to be represented as a 16-bit signed integer.

*NOTE:    This is not the notation used by IBM for its mainframe and enterprise computers.
In the IBM notation, the most significant bit (often the sign bit) is bit 0 and the
least significant bit has the highest number; bit 7 for an 8–bit integer.

Common Notation (8–bit entry)                                    IBM Mainframe Notation

 Bit # 7 6 5 – 1 0 Sign MSB LSB
 Bit # 0 1 2 – 6 7 Sign MSB LSB

We now consider 16-bit addition.  As inputs we have two 16-bit numbers A and B
A =      A15A14A13A12A11A10A9A8A7A6A5A4A3A2A1A0

B =      B15B14B13B12B11B10B9B8B7B6B5B4B3B2B1B0

For each number, bit 15 is the sign bit, bit 14 is the bit for 214 = 16384, bit 13 is the bit for
213 = 8192, etc.  Conceptually, a 16-bit adder comprises sixteen one-bit full adders, each taking in a carry bit from the lower order adder and producing both a sum bit and a carry-out bit.  The following figure shows the three high order full adders for the three high order bits. Overflow occurs in two cases
When A15 = 0, B15 = 0, and S15 = 1       Two positive numbers sum to a negative number
When A15 = 1, B15 = 1, and S15 = 0       Two negative numbers sum to a positive number

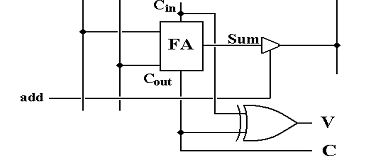

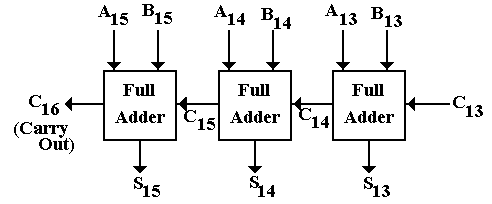

To understand overflow, we need only to consider the full-adder used to add the two sign bits; in this case we consider the full adder for bit 15.

A15

B15

C15

S15

C16

Overflow

0

0

0

0

0

No

0

0

1

1

0

0

1

0

1

0

Not possible

0

1

1

0

1

Not possible

1

0

0

1

0

Not possible

1

0

1

0

1

Not possible

1

1

0

0

1

# YES

1

1

1

1

1

No

It is easy to prove that overflow is not possible when adding numbers of opposite signs.  When adding two valid 16 bit numbers, overflow can occur only when the magnitude of the sum is greater than the magnitude of either of the two input numbers – this can occur only when the two numbers have the same sign.  Consider the two rows        A15 = 0, B15 = 0, C15 = 1, S15 = 1

and                  A15 = 1, B15 = 1, C15 = 0, S15 = 0.

These are the only two cases in which overflow occurs.  Closer inspection of this full-adder table gives rise to a simpler method for identifying the overflow cases.  Only in these two cases of overflow is C16 ¹ C15.  For all other cases we have C16 = C15.  So, our overflow detector is a circuit that detects when C16 ¹ C15.  The Exclusive OR gate is exactly what we need; C16 Å C15 = 1 if and only if C16 ¹ C15.  Thus, the signal is generated by

Overflow = C16 Å C15, or
Overflow = C32 Å C31 for 32 bit numbers.

Saturation Arithmetic

We now discuss a type of integer arithmetic in which overflow cannot occur.  We consider 8-bit integers in both unsigned and two’s-complement form.  The range of integers representable in 8-bits is as follows:

Unsigned integers              0      to      255
Two’s-Complement    – 128      to      127

Saturation arithmetic is most commonly used in computer graphics, where color values may be conveniently represented as a RGB triple of 8-bit integers, one integer for each of the Red, Green, and Blue intensities of the color.  In such a situation, we want the addition operator to saturate at its maximum value rather than overflow.  This avoids some rather bizarre visual effects in the graphics display, such as the appearance of black spots in a white region.

The rule for saturation arithmetic is quite simple.  If the value computed is not in the range representable for the data type, adjust it to the range by either setting it to the minimum or maximum value as appropriate.

Consider saturated 8-bit unsigned arithmetic.  All results must be in the range [0, 255], that is – at least 0 and not greater than 255.

128     + 64         = 192            as in standard arithmetic

128   + 128         = 255            in standard arithmetic this overflows as 256 > 255.
in saturation arithmetic this saturates at 255.

32     – 16           = 16            as in standard arithmetic

32     – 48             = 0            in standard arithmetic this causes an error.

The following table summarizes the difference between standard and saturation arithmetic.

Type of Arithmetic         Result Greater                      Result Smaller

Than Maximum                    Than Minimum
Number Representable         Number Representable

Standard Arithmetic                Error                                     Error

Saturation Arithmetic        Set the result                        Set the result
to the maximum                    to the minimum

number representable           number representable

The Barrel Shifter

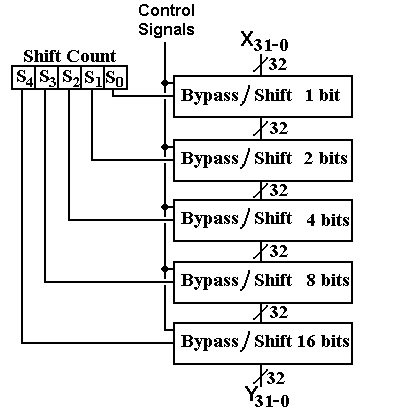

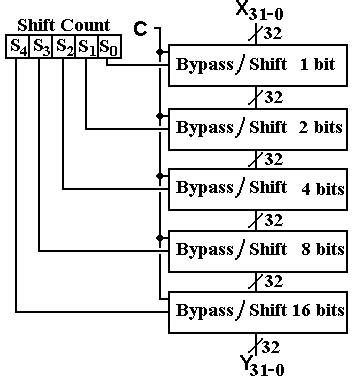

This section focuses on a common implementation  of a barrel shifter, which is a circuit for achieving multiple shifts in minimum time.  There are two varieties of barrel shifter; we shall study the simpler one that uses log2N stages to achieve shifts by N places.

We shall first discuss the logical bases for the shifting operations and then design a sequence of shifters, each more capable that the last, in order to arrive at the final design.  Along the way, we note that the main problem will be the complexity of the drawings.

Types of Shifts

In general, there are two types of shifts – left shifts and right shifts.  These names correspond roughly to the way in which we would illustrate these shifts by drawing diagrams.  Each of the two shift types comes in three varieties: logical, circular, and arithmetic.

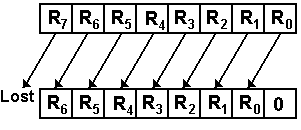

The basic definition of each shift type is in terms of shifting by one place.  We should note that multiple shifts are easily defined; shifting by N places must be equivalent to N single shifts.  For convenience in designing a barrel shifter, we normally think in terms of shifting by N = a power of two, so that a shift by 13 places is a shift by 1 place, followed by a shift by 4 places, and then a shift by 8 places, as 13 = 1 + 4 + 8.

We shall illustrate the shift types by considering them as applied to an eight-bit shift register, with contents labeled as R7 R6 R5 R4 R3 R2 R1 R0.  We use 1001 0110 as an example.

Logical Shifts

Logical shifts just move bits in the indicated direction, padding out with 0’s.  Shifts can be by any count, but shifts by more than the size of the register leave it all 0’s. For left shifting an N-bit register by 1 place
RJ+1 ¬ RJ        for 0 £ J < (N – 1)
R0 ¬ 0, R(N – 1) is lost

As an example of a shift of an 8-bit register
1001 0110 becomes 0010 1100 For right shifts by 1 place
RJ+1 ® RJ        for 0 £ J < (N – 1)
R(N – 1) ¬ 0, R0 is lost

As an example of a 8-bit register shift
1001 0110 becomes 0100 1011

Left shift by 2 places:             1001 0110 becomes 0101 1000
Right shift by 2 places:           1001 0110 becomes 0010 0101

Note that shifting either left or right by eight or more places produces the result 0000 0000, so that the shift count will normally be in the range 0 through 7 inclusive.

The general rule for an N-bit register is that the shift count is usually in the range from 0 to (N – 1) inclusive, a modulo-N non-negative number.

Arithmetic Shifts

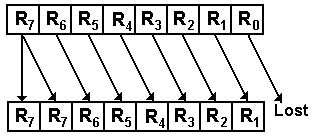

Arithmetic shifts are identical to logical shifts except that the sign bits are preserved.  Arithmetic shifting is normally defined only for right shifts. For right shifts by 1 place
RJ+1 ® RJ        for 0 £ J < (N – 1)
R(N – 1) ® R(N – 1), R0 is lost

As an example of an 8-bit register

1001 0110 becomes 1100 1011

The purpose of arithmetic shifts is to cause the right shift to become equivalent to division by two on two’s-complement integers.  We use 8-bit two’s-complement arithmetic to illustrate the correspondence of shifting to multiplication and division.  The range of this representation is from – 128 to 127 inclusive.

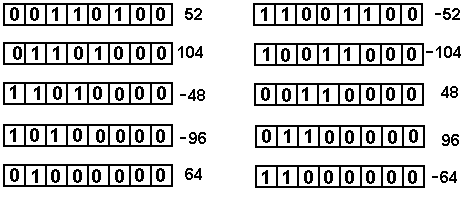

Consider the number 52, represented as 0011 0100 in binary.  Taking the two’s-complement of this binary pattern, we find that the representation of – 52 is 1100 1100.

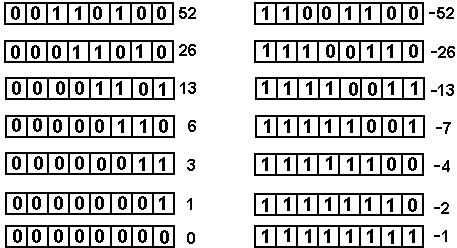

We first apply successive arithmetic right shifts to both 52 and – 52. We now apply successive logical left shifts to the same two numbers. Note that this corresponds to multiplication by two whenever the sign bit stays the same.

Circular Shifts

Circular shifts are identical to logical shifts except that bits “shifted off” one end are put at the other end, thus making the shift appear as a circle. For left shifts by 1 place
RJ+1 ¬ RJ        for 0 £ J < (N – 1)       R0 ¬ R(N – 1), nothing is lost

As an example for an 8-bit shift
1001 0110 becomes 0010 1101 For right shifts by 1 place
RJ+1 ® RJ        for 0 £ J < (N – 1)
R(N – 1) ¬ R0

As an example of an 8-bit shift
1001 0110 becomes 0100 1011

Circular shifts are quite often used when writing code for device drivers.  These drivers assign bits in a word as logical flags.  Suppose that bits 3 and 2 of an 8-bit register contain a device select.  We would right shift by two to get the bits into position and do a logical AND.  Note that the circular shift does not lose information, as do the logical and arithmetic shifts.

Example:        Let R =                        0010 0101
Right shift by 2           0100 1001
AND 0000 0011         0000 0001       The selected device is 01.

Logical Left Shift

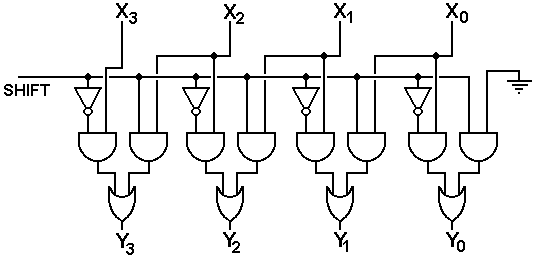

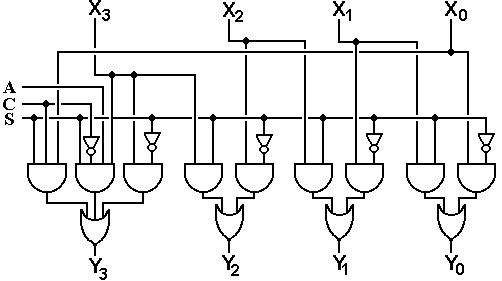

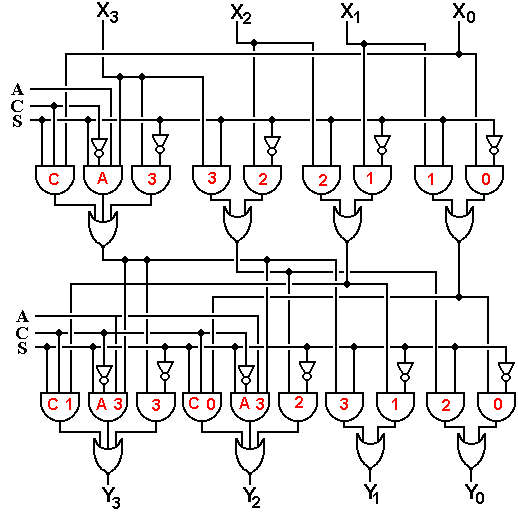

We begin our study of barrel shifters by presenting a very simple logical left shift circuit.  As this author had to draw the circuit, it is presented as a four-bit shifter taking input X3X2X1X0 and outputting Y3Y2Y1Y0.  This shifter is controlled by a signal named “SHIFT”.
If SHIFT = 0, the circuit is a copy.
If SHIFT = 1, the circuit performs a left shift by one position. The basic element in this circuit is the shifter comprising two AND gates and an OR gate.  The SHIFT control signal here is designated by S.  There are two inputs When S = 0, the input labeled IN0 is passed to the output; when S = 1, the input labeled IN1 is passed to the output.  In the above circuit, we have the following connections:
For 1 £ N £ 3              IN0 is connected to XN
IN1 is connected to XN–1

For N = 0                    IN0 is connected to X0
IN1 is connected to 0.

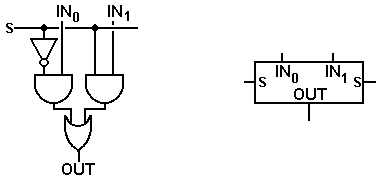

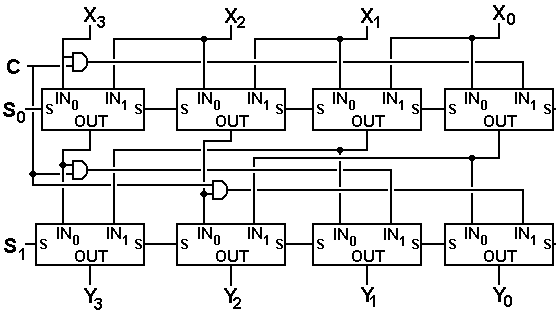

In order to simplify our drawings, we use the symbol at the right to represent this simple shift/pass-through circuit.  Note that the input S is output by the element as input.

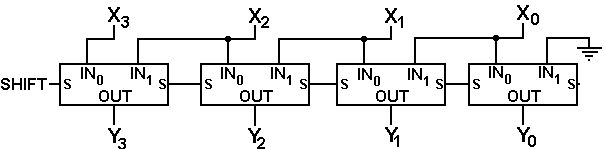

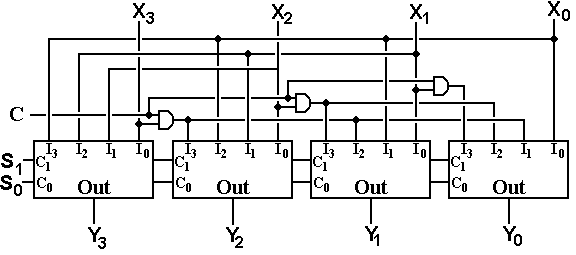

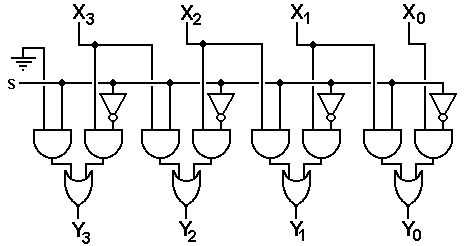

We now present the simple left shifter diagram using our new circuit element. The reason for the unusual alignment of the input will become obvious in the next discussion.  Note that each element passes the SHIFT control signal to the next one.  This is a convention used in the diagram to avoid drawing too many crossing lines.

Logical Left Shifter for Multiple Shifts

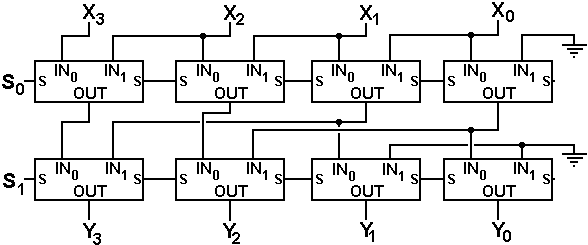

We now present a shifter that will shift left by 0, 1, 2, or 3 places.  The amount of the shift is controlled by the binary number S1S0. The shift is implemented in two stages, the first stage shifting by either 0 or 1, and the second stage shifting by either 0 or 2.  This is basically a barrel shifter.  The rules are
Signals                   Action                                     Top Unit          Bottom Unit

S1 = 0      S0 = 0          No shift                                   No shift           No shift
S1 = 0      S0 = 1          Left shift one place                 Shift by 1        No shift
S1 = 1      S0 = 0          Left shift two places               No shift           Shift by 2
S1 = 1      S0 = 1          Left shift three places             Shift by 1        Shift by 2

Allowing Circular Shifts

We now make a modification to allow selection between circular and logical shifts.

The control signal is C.  If C = 0, the shift is logical.  If C = 1 the shift is circular.

One should note that even this simple shifter is associated with a circuit diagram that is increasingly hard to read. The Two-Level 4-Bit Barrel Shifter

Another Implementation of A Left Shifter

We now present an implementation of a four-bit logical left shifter with 4-to-1 multiplexers.

Each output has a selection of four inputs, depending on the shift count.  As above, C is the circulate control, with C = 0 for logical shifts and C = 1 for circular shifts.  The shift count is specified by the binary number S1S0, which is passed on by each multiplexer to the next one. The Multiplexer-Based 4-Bit Barrel Shifter

Another Look at the 4-bit Shifter

Our presentation of the barrel shifter will be based on the design that uses multiple levels of two-input shift units.  The representation of this design, as shown above, works well for 4-bit shifters, but will become complex for a 32-bit shifter.  For that reason, we show two simpler representations of the two-level four-bit barrel shifter. Simpler Representations of the Two-Level Four-Bit Barrel Shifter

The design on the left shows the barrel shifter with each level of four shift units grouped into a single block labeled by its functionality.  The figure on the right is drawn in the simplest style possible.  This is the representation that we shall use.

A 32-bit Left Shifter The figure on the right shows the general 32-bit left shifter as we shall draw such figures in order to minimize complexity.  Note that it comprises five shifting levels, one each for shifts by 1, 2, 4, 8, and 16 bits.  Each level is controlled by one bit of the five bit shift-count register.  In a more general CPU design, this shift count register will be a part of the Instruction Register (IR).  Note the control signal C, which continues to stand for Circular: C = 0 for a logical shift and C = 1 for a circular shift.

Logical Right Shift

As before, we begin with a basic AND/OR/NOT circuit implementing the logical right shift.  Note that this is almost a mirror-image of the logical left shifter. Right Shift: Logical, Arithmetic, and Circular

We now add two control signals, A for Arithmetic Shift and C for Circular Shift.  Neither of these will have effect if S = 0, calling for no shift.  When S = 1, the following holds
A = d     C = 1       Circular right shift.  This is an arbitrary decision, but the signals
A and C should not be asserted simultaneously.
A = 1     C = 0       Arithmetic right shift

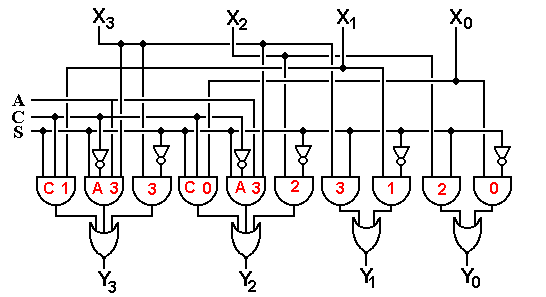

A = 0     C = 0       Logical right shift In order to understand the above circuit, consider the input to the left AND gate corresponding to the Y3 output.  This gate is active when S = 1, indicating a shift.

The operative part of the circuit, providing input when S = 1 is shown below. From the above diagram we derive the truth table shown below.  The student should understand that the action for the condition A = 1 and C = 1 was decided by which decision would yield the neater drawing, not by any deep consideration of architectural details.

 A C Input 0 0 0 0 1 X0 1 0 X3 1 1 X0

The above circuit, while logically correct, “misses the forest for the trees” in that it overlooks an obvious simplification in the circuitry.  What we have in the first try at the circuit for Y3 input is an OR gate feeding another OR gate.  This can be simplified. We now trace the output of the revised and simplified circuit.  When S = 0, there is no shift.

If S = 0                              then Y3 = X3 (no shift), as expected.
If S = 1 and C = 1             then Y3 = X0 – for a circular shift
If S = 1, C = 0, and A = 1            then Y3 = X3 (copy the sign bit) for an arithmetic shift.
If S = 1, C = 0, and A = 0            then Y3 = 0, for a logical right shift.

Again, the precedence of C = 1 over A = 1 is an arbitrary design decision

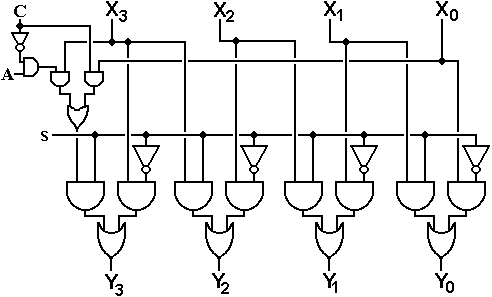

Here is the shift-by-one level slightly redrawn to facilitate readability. A barrel shifter for right shifts by two is a bit more complex. In the diagram above, each AND gate has been labeled with the input to which it corresponds.  Again, all we really need to worry about is the complexity.

Here is the two-level barrel shifter capable of shifting right by 0, 1, 2, or 3 places. Shown below is the two-level simplification of the above circuit. Here is the version of the shifter that we shall use in future work.  There are a number of control inputs to this circuit that determine the shifting of X31-0 to produce Y31-0.

The shift count is a five-bit binary number, ranging in value from 0 through 31 inclusive.

There are three control signals: the shift direction: 0 for right shift and 1 for left shift
A        the arithmetic shift flag, this applies only to right shifts.
If A = 1, we have an arithmetic shift (if = 0)
C         the circular shift flag.  If C = 1 we have a circular shift.

Recall that we have arbitrarily decided to do a circular shift if both A = 1 and C = 1.  The only requirement for this circuit is that when both shift signals are asserted, only one is done. The Arithmetic Logic Unit

We now consider the ALU (Arithmetic Logic Unit) of the CPU (Central Processor Unit) of the computer and show how it is built from the circuits that we have previously considered.
We shall begin with a very simple ALU, with a limited set of operations that include three Boolean operators (AND, OR, and NOT), simple transfer operations, and addition.

The reader will note that three of the above operations (AND, OR, and addition) are dyadic; that is, they require two arguments and produce one output.  To accommodate this fact, all modern arithmetic logic units are constructed with two input busses and one output bus.  Operations, such as W = X + Y + Z (adding three arguments) are always broken down into a sequence of dyadic operations in order to avoid great complexity in the CPU.

The standard symbol for an ALU is shown in the figure below.  The naming of the three busses is this author’s own notation, though similar to that used by other authors.  Flow is from top to bottom; B1 and B2 are the input busses, and B3 is the output bus. As an aside at this point, we note that the three–bus ALU dictates a CPU with at least three internal busses, which are separate from the system bus that connects the CPU to memory and I/O devices.  The figure below shows a rough view of the CPU. This figure shows the four major components in the Central Processing Unit: the ALU, the set of registers, the Control Unit, and the bus structure.  The Control Unit issues signals to the ALU that cause it to operate on input data and produce output data, which is possibly copied back into one of the registers.

The control unit for this very simple ALU will issue four discrete control signals.
and                  the ALU takes the logical AND of B1 and B2
or                    the ALU takes the logical OR of B1 and B2
not                   the ALU takes the logical NOT of B1

Logical Functions of the ALU
We begin with an implementation of the logical functions.  The main reason for this is that the processing of each bit can be considered separately.  Suppose that we are dealing with
32–bit words.  Each of the three busses will have 32 lines, one for each bit in the registers.  The lines in bus B1 will be labeled as B131 though B10 with bit K being B1K.  Busses B2 and B3 will be labeled in a similar manner.

The reader should remember that the logical operations are bitwise implemented as the single bit Boolean operations discussed earlier.  Thus, were we to have two 8–bit values X and Y.

X = 0100 0110      X = 0100 0110
Y = 0111 1010      Y = 0111 1010      Y = 0111 1010
OR  0111 1110       AND 0100 0010     Not 1000 0101

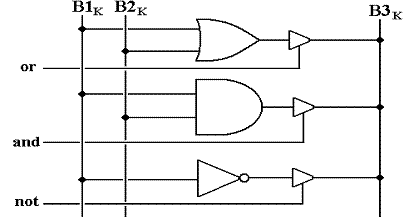

The logical part of the ALU will consist of the following circuit, replicated 32 times. Note that these logical operations are bitwise, in that the output for bit K does not depend on the output of either bit (K – 1) or bit (K + 1).  As a result, this circuit is the same for all 32 bits of the three busses.

Note that the output of each of the three Boolean logic gates is connected to bus B3 via a
tri–state buffer.  This follows a common design practice that has two motivations.

1.   When the device is not active, there is no assertion of any signal on the output bus.

2.   The use of tri–states allows easy extension of the unit, just by simple addition of
other gates also connected to the output bus via tri–states.

The reader will note here a very common assumption in the design of any components to be used in the computer, particularly the CPU.  That assumption is worth a paragraph.

The control unit is assumed to work correctly.

In this example, we have three control signals that are sent to the ALU from the Control Unit.  Following his standard usage, your author has denoted these in bold lowercase font.  They are “or”, “and”, and “not”.  At any time, we must assume one of the 2 following situations.
1.   None of the control signals is asserted and the ALU is doing nothing.
2.   Exactly one of the control signals is asserted and the ALU is responding.
If two or more of these control signals are asserted at the same time, all bets are off.

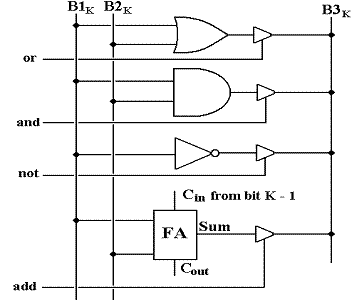

We now extend the ALU by giving it a ripple–carry adder.  This involves assigning a full adder to each of the bit units, with the low and high order units needing special attention. Considering addition requires the full adder for bit K to take a carry in from bit (K – 1) and produce a carry out to bit (K + 1).

Here is the circuit for the “interior bits”, bit K with 0 < K < 31. The full adder for the high–order (sign) bit, here assumed to be bit 31, is somewhat modified.  The overflow bit, V, is generated as V = C31 Å C32 (C31 is the carry–in for full adder 31).  The ripple–carry carry bit, C, is just the carry–out from full adder 31; C = C32. The full adder for the low–order bit, always bit 0, has no “less significant bit” from which to accept a carry–in.  In a pure adder (with no subtraction), the carry–in is always set to logic 0; it is connected to ground.  Multiple–precision arithmetic will require a circuit that can set C0 to either 0 or 1 to reflect the carry–out of a previous addition.  There is also a use for this bit in some variants of adder/subtractors, as indicated previously in this chapter.

We close this discussion with a “common sense” note.  No commercially viable computer will use a ripple–carry adder in its ALU; it is just too slow.  This textbook uses such an adder only because it is logically correct and easy to understand.  Real computers must perform.

Solved Problems

We now present some solved problems.

PROBLEM

Given a function represented by the truth table

 X Y Z F(X, Y, Z) 0 0 0 0 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 1 1 1 0 0 1 1 1 1

Implement this function using an 8-to-1 multiplexer and no other logic gates.

ANSWER:  We use an eight-to-one multiplexer with three control lines C2, C1, and C0.  Because we list X, Y, Z in that order in the function, we set C2 = X, C1 = Y, and C0 = Z.  Note that all inputs must be specified – either connected to logic 1 or logic 0. PROBLEMS FOR SOLUTION

1.   Design and implement a 2-to-4 decoder using only AND, OR, and NOT gates.

2.   Design and implement a 4-to-1 multiplexer using only AND, OR, and NOT gates.

The next few problems are based on the following truth table.

 A B C F(A, B, C) 0 0 0 0 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 1 1 1 0 0 1 1 1 1

3.   Use a 3-to-8 decoder and a single 5-input OR gate to realize this function.
In other words, use these gates to design a circuit for this function.

4.   Use a 3-to-8 decoder and a single 3-input NOR gate to realize this function.

5.   Use an 8-to-1 multiplexer to realize this function.

6.   An enabled-low active-high decoder is one for which all outputs are inactive (equal
logic 0) when Enable = 1 and for which only the selected output is active (equal
logic 1) when Enable = 0.  Use a 1-to-4 demultiplexer to realize this circuit.
