Chapter 27: Indexed Sequential Access Method (ISAM)

Author’s Note:      This chapter is copied almost verbatim from the material in
                              Chapter 20 of the textbook by Peter Abel.  It is used by permission.

Indexed sequential access method (ISAM) is available in many variations on
microcomputers, minicomputers, and mainframes, although the preferred method
under DOS/VS and OS/VS is the newer VSAM.  (ELB: It is a fact that VSAM, to
be discussed in the next chapter, can perform all of the services of ISAM.  For this
reason, many instructors prefer not to cover ISAM, but skip to VSAM.  ISAM is
included for historical reasons.)

A significant way in which ISAM (and other nonsequential file organization methods)
differs from sequential organization is that the record keys in an indexed file must be
unique; this is a system requirement, not just a programming practice. Consequently, an
indexed file is typically a master file. Also, there is a clear difference between updating a
sequential file and updating an indexed file. When you update a sequential file, you rewrite
the entire file; this practice leaves the original file as a convenient backup in case the job
must be rerun. When you update an indexed file, the system rewrites records in the file
directly in place, thereby providing no automatic backup file. To create a backup, you
periodically copy the file onto another device.

The flexibility of indexed sequential access method is realized at some cost in both storage
space and accessing time.  First, the system requires various levels of indexes to help locate
records in the file.  Second, the system stores new, added records in special reserved
overflow areas.  Check that your system supports ISAM before attempting to use it.

CHARACTERISTICS OF INDEXED SEQUENTIAL FILES

ISAM initially stores records sequentially and permits both sequential and random
processing. The features that provide this flexibility are indexes to locate a correct
cylinder and track and keys to locate a record on a track.

Keys

A key is a record control field such as customer number or stock number. Records in an
indexed file are in sequence by key to permit sequential processing and to aid in locating
records randomly, and blocks are formatted with keys. That is, ISAM writes each block
immediately preceded by the highest key within the block, namely, the key of the last or only
record in the block. The key is usually also embedded within each data record, as normal.

Unblocked Records

This is the layout of keys for unblocked records:

Key 201



Record 201

Key 205



Record 205

Key 206



Record 206

The records could represent, for example, customer numbers, and the keys could be for
customer numbers 201, 20S, and 206. In this example, the key is 3 characters long and the
data record is the conventional size. Under unblocked format, a key precedes each block
containing one record.




Blocked Records

This is the layout of keys for blocked records based on the preceding unblocked example:

Key 206



Record 201

Record 205

Record 206

Under blocked format, the key for the last record in the block, 206, precedes the block.

ISAM automatically handles this use of keys, and when you perform a read operation,
the system delivers the block, not the separate key, to main storage.

Indexes

To facilitate locating records randomly, ISAM maintains three levels of indexes on disk:
track index, cylinder index, and an optional master index.

Track index. When ISAM creates a file, it stores a track index in track 0 of each cylinder
that the file uses. The track index contains the highest key number for each track on the
cylinder. For example, if track 4 on cylinder 12 contains records with keys 201,205,206,
and 208, the track index contains an entry for key 208 and a reference to cylinder 12, track 4.
If a disk device has ten tracks per cylinder, there are ten key entries for each track index, in
ascending sequence.

Cylinder index. When ISAM creates a file, it stores a cylinder index on a separate cylinder
containing the highest key for each cylinder. For example, if the file is stored on six
cylinders, the cylinder index contains six entries.

Master index. An optional master index facilitates locating an appropriate cylinder index.
This index is recommended if the entries in the cylinder index exceed four cylinders,
which is a very large file.

PROCESSING AN INDEXED FILE

Consider a small indexed file containing 14 records on cylinder 5, with tracks 1 and 2
containing five records and track 3 containing four. This area is known as the prime data
area. Track 1, for example, contains records with keys 205, 206, 208, 210, and 213.
Assume that records are suitably blocked.

Track

Data Records on Cylinder 5

1

205 206 208 210 213

2

214 219 220 222 225

3

226 227 230 236 unused

Track 0 of cylinder 5 contains the track index, with an entry indicating the high key for each
track. The track index entries specify that the highest keys on cylinder 5, tracks 1, 2, and 3
are 213, 225, and 236, respectively:


The cylinder index contains an entry for each cylinder that contains data, indicating the high
key for each cylinder.  In this case, the only index entry is a key 236 on cylinder  5 (the track
number is not important in this index):

As an example of processing, a program has to locate randomly a record with key 227.
The read statement directs the system to perform the following steps:

1.   Check the cylinder index (assuming no master index), comparing key 227 against its
      first entry, 236. Since 227 is lower, the required record should be on cylinder 5.

2.   Access the track index in cylinder 5, track 0, comparing key 227 successively against
      each entry: 213 (high), 225 (high), and 236 (low). According to the entry for 236,
      the required record should be on cylinder 5, track 3.

3.   Check the keys on track 3; find key 227 and deliver the record to the program's input
      area.  If the key and the record do not exist, ISAM signals an error.

As you can see, locating a record randomly involves a .number of additional processing
steps, although little extra programming effort is required. Even more processing steps are
involved if a new record has to be added. If ISAM has to insert the record within the file,
it may have to "bump" a record into an overflow area.

Overflow Areas

When a program first creates a file, ISAM stores the records sequentially in a prime data
area. If you subsequently add a new record; ISAM stores it in an overflow area and maintains
links to point to it.  (ELB: In what follows, the reader should recall that a disk cylinder can
be defined functionally as a set of records that the read/write heads can access without being
physically moved.  Track–to–track head motion is time consuming, taking about 10 msec.)

There are two types of overflow areas: cylinder and independent:

1.   For a cylinder overflow area, each cylinder has its own overflow track area.  ISAM
      reserves tracks on the same cylinder as the prime data for all of its overflow records
      stored on a specific cylinder. The advantage of cylinder overflow is that less disk seek
      time is required to locate records on a different cylinder. The disadvantage is an uneven
      distribution of overflow records: Some of the overflow cylinders may contain many
      records, whereas other overflow cylinders may contain few or none.

2.   For an independent overflow area, ISAM reserves a number of separate cylinders for all
      overflow records in the file. The advantage is that the distribution of overflow records is
      unimportant. The disadvantage is in the additional access time to locate records
      in the overflow area.

A system may adopt both types: the cylinder overflow area for initial overflows and the independent
overflow area in case cylinder overflow areas overflow.


In our most recent example, adding a record with key 209 causes ISAM to bump record 213
from track 1 into an overflow area, move 210 in its place, and insert 209 in the place vacated
by 210. The following assumes a cylinder overflow area in track 9:

Track

Data Records on Cylinder 5

Comments

1

205 206 208 209 210

Prime Data Area

2

214 219 220 222 225

3

226 227 230 236 unused



9

213

Overflow Area

The track index now becomes 210, with a pointer (not shown) to key 213
in the overflow area.

Reorganizing an Indexed File

Because a large number of records in overflow areas cause inefficient processing, an
installation can use a program periodically to rewrite or reorganize the file. The program
simply reads the records sequentially and writes them into another disk area. ISAM
automatically follows its indexes for the input file and delivers the records sequentially from
the prime and overflow areas. It stores all the output records sequentially in the new prime
data area and automatically creates new indexes. At this time, the program may drop records
coded for deletion.

PROCESSING DOS INDEXED SEQUENTIAL FILES

Since ISAM automatically handles indexes and overflow areas, little added programming
effort is involved in the use of indexed files. There are four approaches to processing:

1    Load or Extend. The initial creation of an ISAM file is known as loading. Once a file
      is loaded, you may extend it by storing higher-key records at the end of the file.

2    Adding Records. New records have keys that do not currently exist on the file.
      You have to insert or add these records within the file.

3.   Random Retrieval. To update an ISAM file with data (such as sales and payments
      on customer records), you use the key to locate the master record randomly
      and rewrite the updated record.

4.   Sequential Processing. If you have many records to update and the new transactions
      are in sequence, you can sequentially read, change, and rewrite the ISAM master.

Load or Extend a DOS ISAM File

Loading a file creates it for the first time, and extending involves storing records at the end.
Input records must be in ascending sequence by a predetermined key, and all keys must be
unique. For load and extend, you code the usual OPEN and CLOSE to activate and
deactivate the file. Figure 27-1 uses sequential input records to load an ISAM file named
DISKIS. The new macros for this purpose are SETFL, WRITE, ENDFL, and DTFIS.


The prototypes for these macros are as follows:

Name

Operation

Operand

[label]

SETFL

filename

[label]

WRITE

filename, NEW_KEY

[label]

ENDFL

filename

Let's examine the imperative macros and the DTFIS file definition macro.

SETFL (Set File Load Model. SETFL initializes an ISAM file by preformatting the last
track of each track index. The operand references the DTFIS name of the ISAM file to
be loaded. In Fig. 27–1, SETFL immediately follows the OPEN macro.

WRITE. The WRITE macro loads a record into the ISAM file. Operand 1 is your DTFIS
filename, and operand 2 is the word NEWKEY. You store the key and data area in a work
area (named ISAMOUT in Fig. 27–1). DTFIS knows this area through the entry
WORKL=ISAMOUT.  For the WRITE statement, ISAM checks that the new key is in
ascending sequence. ISAM then transfers the key and data area to an I/O area (named
IOARISAM in the figure and known to DTFIS by IOAREAL=IOARISAM).
Here ISAM constructs the count area:

ENDFL (End File Load Model. After all records are written and before the CLOSE,
ENDFL writes the last data block (if any), an end-of-file record, and any required index
entries.

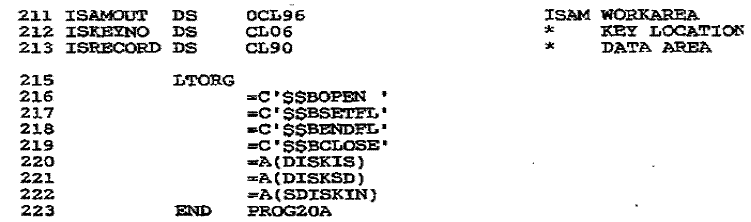

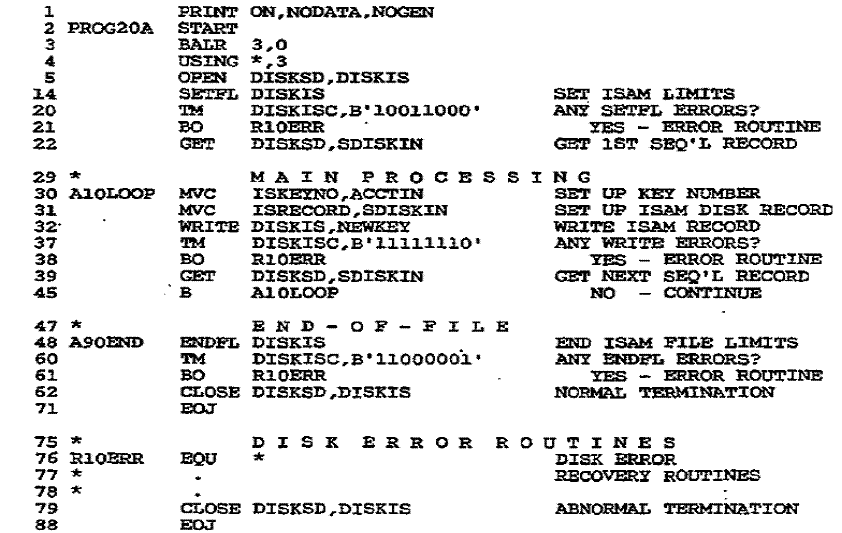

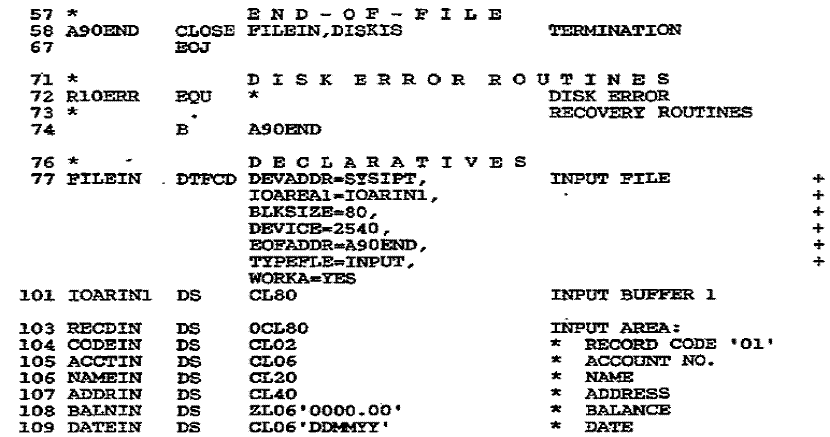

Figure 27–1  Program: Loading a DOS ISAM File

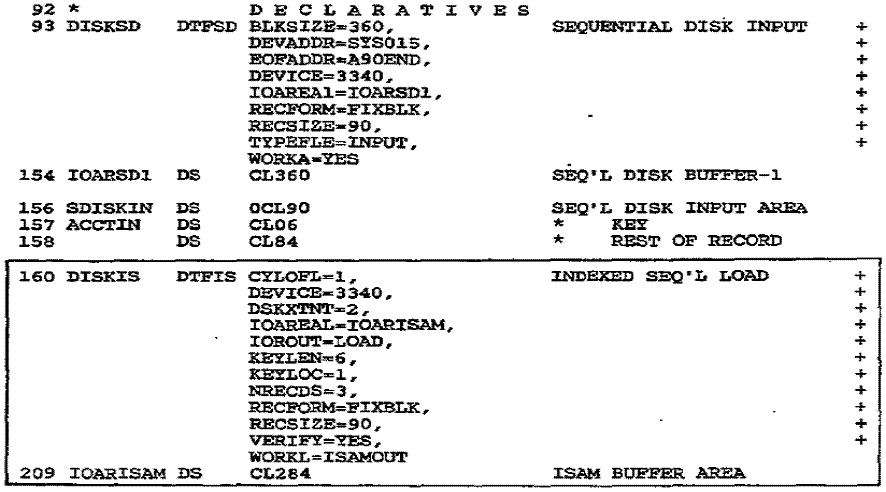

The DTFIS Macro

The maximum length for an ISAM filename is 7 [characters]. In Fig. 27–1, the DTFIS entries
for the file being loaded are as follows:

CYLOFL= 1 gives the number of tracks on each cylinder to be reserved for each cylinder
overflow area (if any).

DEVICE= 3340 is the disk device containing the prime data area or overflow area.

DSKXTNT= 2 provides the number of extents that the file uses: one for each data extent and
one for each index area and independent overflow area extent. The program in Fig. 27–1 has
one extent for the prime data area and one for the cylinder index.

IOAREAL=IOARISAM provides the name of the ISAM I/O load area. The symbolic name,
IOARISAM, references the OS buffer area. For loading blocked records, you calculate the
field length as Count area (8) + key length (6) + block length (90 x 3) = 284

IOROUT=LOAD tells the assembler that the program is to load an ISAM file.

KEYLEN=6 gives the length of each record's key.

KEYLOC= 1 tells ISAM the starting location of the key in the record,
where 1 is the first position.

NRECDS=3 provides the number of records per block.

RECFORM=FIXBLK indicates fixed, blocked record format.

RECSIZE =90 gives the length of each record.

VERIFY= YES tells the system to check the parity of each record as it is written.

WORKL=ISAMOUT gives the name of your load work area, which is a OS defined
elsewhere in the program. For blocked records, you calculate the field length as
Key length (6) + data area (90 X 3) = 284  [ELB.  I say 276]

For unblocked records, you would calculate the field length as
Count area (8) + key length + “sequence link field” (10) + record length.

Status Condition

On execution, ISAM macros may generate error conditions, which you may test. After each
I/O operation, ISAM places its status in a one-byte field. named “filenameC”.  For example,
if your DTFIS name is DISKIS, ISAM calls the status byte DISKISC. Following is a list
of the 8 bits in filenameC tbat the system may set when loading an ISAM file:

BIT                 LOAD STATUS ERROR CONDITION

0          Any uncorrectable disk error except wrong length record.

1          Wrong length record detected on output.

2          The prime data area is full.

3          SETFL has detected a full cylinder index.

4          SETFL has detected a full master index.

5          Duplicate record – the current key is the same as the one previously loaded.

6          Sequence error – the current key is lower than the one previously loaded.

7          The prime data area is full, and ENDFL has no place to store the end-of-file record.

The program in Fig. 27–1 uses TM operations to test DISKIS after execution of the macros
SETFL, WRITE, and ENDFL. After SETFL, for example, TM tests whether bits 0, 3, and 4
are on.  If any of the conditions exist, the program executes an error routine (not coded)
where the program may isolate the error and issue an error message.

The job control commands also vary. First, the DLBL job entry for "codes" contains ISC,
meaning indexed sequential create, and second, there is an EXTENT command for both
the cylinder index and the data area.

Random Retrieval of an ISAM File

The main purpose of organizing a file as indexed sequential is to facilitate the random
accessing of records. For this, there are a number of special coding requirements. The
program in Fig. 27–2 randomly retrieves records in the file created in Figure 27–1.  The
program reads a file of modification records in random sequence, with changes to the ISAM
master file.  For each modification record, the program uses the account number (key) to
locate the correct ISAM record, correct it, and then update the record on the ISAM file.

ISAM Macros for Random Retrieval

The new macros for random retrieval are:

Name

Operation

Operand

[label]

READ

filename, KEY

[label]

WAITF

filename

[label]

WRITE

filename, KEY

READ causes ISAM to access a required record from the file. Operand 1 contains the DTFIS
filename, and operand 2 contains the word KEY. You store the key in the field referenced by
the DTFIS entry KEYARG. In Fig. 27–2, KEYARG=KEYNO. For each modification record
processed, the program transfers the account key number to KEYNO.

WAITF allows completion of a READ or WRITE operation before another is attempted.
Since a random retrieval reads and rewrites the same record, you must ensure that the
operation is finished. Code WAITF anywhere following a READ or WRITE and preceding
the next READ or WRITE.

WRITE rewrites an ISAM record. Operand 1 is the DTFIS filename, and operand 2 is the
word KEY, which refers to your entry in KEYARG.

The DTFIS Macro

In Fig. 27–2, the DTFIS entries for the random retrieval include these:

IOAREAR=IOARISAM provides the name of the ISAM I/O retrieval area.  The symbolic
name, IOARISAM, references the DS retrieval area for unblocked  records. For blocked
records, the buffer size is given by: Record length (including keys) x blocking factor

For unblocked records, the buffer size is given by:
Key length + "sequence link field" (10) + record length

TYPEFLE= RANDOM means that the system is to retrieve records randomly by key.
Other entries are SEQNIL for sequential and RANSEQ for both random and sequential.

WORKR=ISAMOUT gives the name of your retrieval work area.

Status Condition

The status byte for add and retrieve is different from load.  The following is a list of the
8 bits in finenameC that the system may set.

BIT                 ADD AND RETRIEVE STATUS ERROR CONDITION

0          Any uncorrectable disk error except wrong length record.

1          Wrong length record detected on output.

2          End–of–file during sequential retrieval (not an error).

3          The requested record is not in the file.

4          The ID given to SETFL for SEQNTL is outside the prime data limits.

5          Duplicate record – an attempt to add a record that already exists in the file.

6.         The cylinder overflow area is full.

7          A retrieval operation is trying to process an overflow record.

Figure 27–2   Program: Random retrieval of a DOS ISAM file

The program in Fig. 27–2 uses TM operations to test DISKIS after execution of the macros
READ and WRITE.  Once again, the program would isolate the error and issue a message.

Sequential Reading of an ISAM File

Sequential reading of an ISAM file involves the use of the SETL, GET, and ESETL macros.
SETL (Set Low) establishes the starting point of the first record to be processed. Its options
include these:

     Set the starting point at the first record in the file:

                        SETL filename,BOF

     Set the starting point at the record with the key in the field defined by the
      DTFIS KEYARG entry: .

                        SETL filename,KEY

     Set the starting point at the first record within a specified group. For example, the
      KEYARG field could contain "B480000" to indicate all records with
      key beginning with B48:

                        SETL filename,GKEY

The ESETL macro terminates sequential mode and is coded as ESETL,filename.

DTFIS entries include these:

IOAREAS=buffername for the name of the buffer area. You calculate the buffer size just
as you do for random retrieval.

IOROUT=RETRVE to indicate sequential retrieval.

TYPEFLE=SEQNTL or RANDOM for sequential or random retrieval.

KEYLOC=n to indicate the first byte of the key in a record; if processing begins with
a specified key or group of keys and records are blocked.

To delete a record, you may reserve a byte in the record and store a code in it. A practice
is to use the first byte to match OS requirements. Subsequently, your program may
test for the code when retrieving records and when reorganizing the file.

PROCESSING OS INDEXED SEQUENTIAL FILES

Processing ISAM files under OS is similar to DOS processing, except that QISAM
(Queued Indexed Sequential Access Method) is used for sequential processing and BISAM
(Basic Indexed Sequential Access Method) is used for random processing.

The Delete Flag

Under OS, the practice is to reserve the first byte of each record with a delete flag, defined
with a blank when you create the file. You also code OPTCD=L in the DCB macro or the
DD command. When you want to delete a record, store X'FF' in this byte. QISAM
subsequently will not be able to retrieve the record. QISAM automatically drops the
record when the file is reorganized. Let's examine some features of OS ISAM processing.


Load an ISAM File

The OS imperative macros concerned with loading an ISAM file are the conventional
OPEN, PUT, and CLOSE. DCB entries are as follows:

DDNAME      Name of the data set.

DSORG          Set to “IS” for Indexed Sequential.

MACRF          (PM) for move mode or (PL) for locate mode.

BLKSIZE       Length of each block.

CYLDFL        Number of overflow tracks per cylinder.

KEYLEN        Length of the key area.

LRECL           Length of each record.

NTM               Number of tracks for the master index, if any.

OPTCD           Options required, such as MYLU in any sequence:
                        M establishes a master index (or omit M).
                        Y controls use of cylinder overflow areas.
                        I controls use of an independent area.
                        L is a delete flag to cause bypassing records with X'FF' in the first byte.
                        U (for fixed length only) establishes the track index in main storage.

RECFM          Record format for fixed/variable and unblocked/blocked:
                        F, FB, V, and VB.

RKP                Relative location of the first byte of the key field, where 0 is the first location.
                        (For variable-length records, the value is 4 or greater.)

Sequential Retrieval and Update

Under OS, sequential retrieval and update involve the OPEN, SETL, GET, PUTX,
ESETL, and CLOSE macros.  Once the data has been created with standard labels, many
DCB entries are no longer required.  DDNAME and DSORG=IS are still used,
and the following entries are available:

MACRF=(entry)            The entries are
                                       (GM) or (GL) for input
                                       (PM) or (PL) for output
                                       (GM,SK,PU) if read and rewrite in place, where
                                       S is use of SETL, K is key or key class,
                                       and PU is use of PUTX macro

EODAD=eofaddress     Used for input, if reading to end-of-file.

SYNAD=address          Requests optional error checking.


The SETL macro. SETL (Set Low Address) establishes the first sequential record to be
processed anywhere within the data set. The general format is the following:

Name

Operation

Operand

[label]

SETL

dcb–name, start–position, address

The start–position operand has the following options:

B         Begin with the first record in the data set. (Omit operand 3 for B or BD.)

K         Begin with the record with the key in the operand 3 address.

KC      Begin with the first record of the key class in operand 3. A key class is any group of
            keys beginning with a common value, such as all keys H48xxxx.   If the first record
            is "deleted," begin with the first non–deleted record.

I           Begin with the record at the actual device address in operand 3.

BD, KD, KDH, KCD, and ID cause retrieval of only the data portion of a record.
Here are some examples of SETL to set the first record in a file named DISKIS,
using a 6–character key:

• Begin with the first record in the data set:

     SETL DISKIS,B

• Begin with the record with the key 012644:

     SETL DISKIS,K,KEYADDl

• Begin with the first record of the key class 012:

         SETL DISKIS,KC,KEYADD2



KEYADD1  DC   C'012644'        6-character key

KEYADD2  DC   C'012',XL3'00'   3-character key class

The ESETL macro, used as ESETL DCB–name, terminates sequential retrieval.  If there
is more than one SETL, ESETL must precede each one.

The program in Fig. 27–3 reads an ISAM file sequentially and inserts a delete code
in any record that is more than five years old. The TIME macro delivers the standard
date from the communication region as packed OOyyddd+, and the date in the record
(positions 26-28) is in the same format. The PUTX macro rewrites an obsolete
record with a delete byte in the first position.

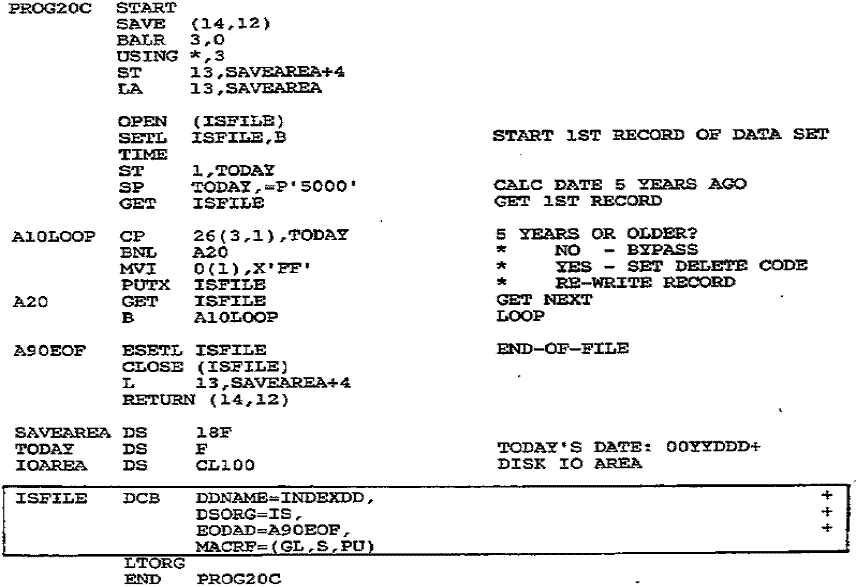

Figure 27–3    Program: Sequential retrieval of an OS ISAM file


KEY POINTS

     The indexed system writes a key preceding each block of records. The key
      is that of the highest record in the block.

     The track index, cylinder index, and master index help the system locate
      records randomly.

     The track index is in track 0 of each cylinder of the file and contains the
      highest key number for each track of the cylinder.

     The cylinder index is on a separate cylinder and contains the key number of
      the highest record on the cylinder.

     The optional master index is recommended if the cylinder index exceeds four
      cylinders in size.

     The master index facilitates locating keys in the cylinder index, the cylinder
      index facilitates locating keys in the track index, and the track index facilitates
      locating the track containing the required record.

     ISAM creates a file sequentially in a prime data area. Subsequent additions
      of higher keys append to the end, and additions of lower keys cause records
      to bump into an overflow area.

     Cylinder overflow areas reserve tracks on a cylinder for all overflows in that
      cylinder. This method reduces disk access time.

     Independent overflow areas reserve separate cylinders for overflows from the
      entire file. This method helps if there is an uneven distribution of overflow records
      – that is, many overflow records in some cylinders and few or none in others.
