Chapter 24: Some Compilation Examples

In this chapter, we shall examine the output of a few compilers in order to understand the assembler language code
emitted by those compilers.  We study this assembler code in order to understand the structure of compilers and
gain a deeper understanding of how to use them.

The high–level languages to be considered in this chapter are mostly the older and less used languages, such as
FORTRAN and COBOL.  The reason for this choice is that they are easier to discuss and do make the points
that are the focus of this chapter.

Variable Type

We start with an immediate distinction between high–level languages and assembler language, and then proceed
to investigate the implications.  The simple, true, and important statement that forms the basic of this chapter is
quite simple.  Here it is.

               Compiled languages use variables; assembler language does not.

Put another way, this chapter focuses on the simple question “What is a variable, and why is it not proper to assume
that an assembler language does not use variables?”  In order to study this, we must first discuss the idea of labels as
used by an assembler and see how these labels are generalized into variables as used by a high–level compiled language.

Assembler language evolved from machine language, which at its basic form is represented as a sequence of binary
numbers.  Most discussions of machine language employ hexadecimal notation (as pure binary is hard to read) and
move towards Assembler Language by substituting mnemonics for binary (or hexadecimal) operation codes.  We shall
use this hybrid notation in order to investigate the use of labels by Assembler Language.

In our earlier discussions of IBMâ 370 Assembler Language, we have mentioned the idea of labels and explained their
usage.  In this discussion of labels, we shall find it a bit easier to first discuss them within the context of an extremely
simple (and fictional) assembly language, such as that for the MARIE, developed by Linda Null and Julia Lobur for
their excellent textbook The Essentials of Computer Organization and Architecture.  This book is published by
Jones and Bartlett (Sudbury, MA).  The version used as the basis for these notes was published in 2003,
with ISBN 0 – 7637 – 2585 – 4.

The MARIE is a single accumulator design, with a very simple instruction set.  This single accumulator holds the
results of any input operation, as well as the results of any load from memory or arithmetic operation.

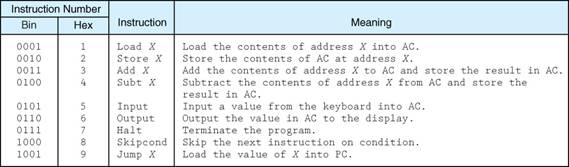

Here is a table describing the basic instruction set, copied from the textbook by Null and Lobur.


The MARIE uses 16–bit words, and has 16–bit instructions.  The instructions have a uniform 4–bit operation code
and possibly 12 bits for operand address; one hexadecimal digit to denote the operation and three hexadecimal digits
to denote the address..  While this architecture is extremely restrictive, it suffices to present an excellent example of a
stored program computer.  More to the point, it exactly illustrates the points important to this chapter.  For this reason,
our early examples are based on the MARIE.

Consider now the following simple program written in MARIE assembler language.  Note that these notes assume that
anything following “//” in a line is a comment; in this way it follows the syntax of Java, C++, and possibly the MARIE assembler.

      LOAD   X    // Value in X is placed into the accumulator
      ADD    Y    // Add value in Y to that in the accumulator
      STORE  Z    // Store value into location Z.
      HALT        // Stop the computer.

In a FORTRAN program, the equivalent statement would be Z = X + Y.

In order to understand the point of this chapter, we must give a plausible machine language rendition of the above simple
assembler language program.  In order to read this, we must recall the following operation codes, which are each single hexadecimal digits.

         0x1         LOAD
         0x2         STORE
         0x3         ADD
         0x7         HALT

Here is the machine language program, rendered with hexadecimal digits.  While comments never form a part of a machine
language program, your author indulges himself a bit here.

    1402     // Load the accumulator from address 0x402
    3404     // Add the contents of address 0x404
    2406     // Store the results into address 0x406
    7000     // Stop the computer.  The contents of the right
             // three digits, here “000”, are irrelevant.

In the very first era of computer programming (late 1940’s), the above machine language program was the standard.  The
programmer had to reserve specific addresses in the memory for data storage, and be sure that these were properly used.
This became tedious very quickly.  Almost immediately, assembler language (also called “assembly language”) was developed
and used.  The first use was to allow programmers to identify storage locations by label and have the assembler allocate
addresses to these labels.

If the assembler is to allocate memory to these labels, the question of how much storage for each symbol immediately suggests
itself.  More specifically, each label is supposed to denote storage for some sort of data.  How much storage is required?

The basic integer storage in the MARIE architecture is a 16–bit integer; this corresponds to the halfword fixed–point binary in
IBM 370 Assembler Language.  For this reason, I elect to extend the MARIE assembler language to use IBM–style data
definitions.  Also, I am using byte addressability, though the MARIE is word addressable, in order to make the 16–bit
word addresses more similar to the IBM halfword addresses.


The assembler language program above might now be written in the following way.

      LOAD   X    // Value in X is placed into the accumulator
      ADD    Y    // Add value in Y to that in the accumulator
      STORE  Z    // Store value into location Z.
      HALT        // Stop the computer.



X     DS     H    // Sixteen bits (two bytes) for label X
Y     DS     H    // Sixteen bits (two bytes) for label Y
Z     DS     H    // Sixteen bits (two bytes) for label Z

Look again at the raw machine code, written in hexadecimal.  Assuming a load address of
0x100 (hexadecimal 100) for the code, the two fragments might resemble the following.

100    1402       // Load the accumulator from address 0x402
102    3404       // Add the contents of address 0x404
104    2406       // Store the results into address 0x406
106    7000       // Stop the computer.

    More stuff

402    0000       // Two bytes associated with label X
404    0000       // Two bytes associated with label Y
406    0000       // Two bytes associated with label Z

In the early days of computer programming, one might write assembler in the fashion above or in the IBM Assembler
Language equivalent (to be used below), but one then needed to decide on the storage allocation and convert
everything to binary by hand.

The idea of an assembler that processed a slightly–higher–level language dates at least to the late 1940’s (with the EDSAC),
and probably predates that.  The two main features of early assembler languages both related to the interpretation of symbols,
as either:

         1.   Operation labels to be translated into opcodes, or
         2.   Labels that were to identify addresses, either of data or locations in the code.

Most early assemblers used two passes.  The first pass would identify the symbols and the second pass would generate
the machine language.  Consider again the above code.

      LOAD   X    // Value in X is placed into the accumulator
      ADD    Y    // Add value in Y to that in the accumulator
      STORE  Z    // Store value into location Z.
      HALT        // Stop the computer.

      // More code here.

X     DS     H    // Sixteen bits (two bytes) for label X
Y     DS     H    // Sixteen bits (two bytes) for label Y
Z     DS     H    // Sixteen bits (two bytes) for label Z

The first pass would identify the tokens (LOAD, ADD, STORE, and HALT) as instructions.  It would identify the labels
(X, Y, and Z) as being associated with addresses.  It is important to note what the assembler will not do.


Consider the processing of the three data definitions.  In following the process, we need to note what information the
assembler can be considered to store in its symbol table, and how it processes the explicit length for each type.
Each declaration calls for two bytes.

The first pass of the assembler is based on a value called the location counter (LC).  The assembler assumes a start
address (which will be adjusted by the loader), and allocates storage for each instruction and data item relative to this
start address.  The above example is repeated here, to show how the LC would be used if byte addressing were in use.

100    1402       // Load the accumulator from address 0x402
102    3404       // Add the contents of address 0x404
104    2406       // Store the results into address 0x406
106    7000       // Stop the computer.

The convention calls for the first instruction to be assigned to location 0x100.  Remember that all numbers in this
discussion are shown in hexadecimal format.  This instruction has a length of two bytes, so it will occupy
addresses 0x100 and 0x101.

The second instruction is to be placed at location 0x102.  It also has two bytes.

The third instruction is to be placed at location 0x104, and the fourth at 0x106.

We assume that more code follows, so that by the time the labels (X, Y, and Z) are read, the location counter has
value 0x402; the next item is to be placed as address 0x402. Recall the declarations, each of which states how
many bytes are to be set aside.

X     DS     H    // Sixteen bits (two bytes) for label X
Y     DS     H    // Sixteen bits (two bytes) for label Y
Z     DS     H    // Sixteen bits (two bytes) for label Z

Label X is associated with address 0x402.  It calls for an allocation of two bytes, so that
the 16–bit number will be stored in bytes 0x402 and 0x403.  The next available
location is 0x404.

Label Y is associated with address 0x404, and label Z is associated with address 0x406. The address for each is
generated by allowing the proper storage for the preceding label.  After this much of the assembler process, we have the following symbol table.

Label

Address

X

0x402

Y

0x404

Z

0x406

But note that the table does not carry any information on the length of the storage space allocated to each symbol, much
less any on its data type.  The only use made of the data definitions is in the placement of the next label.  Specifically,
there is no indication of the types of operations that are appropriate for data contained in these locations; the one writing
the program is responsible to see to that and to use only those operations that are appropriate.

The idea of a variable, as used in a higher level language, comprises far more information than just the location to be
associated with the data.  It includes the type, which dictates not only the size of the storage space, but also the
operations appropriate for the data.


Most high–level languages specify that each variable has a type associated.  Early languages, such as FORTRAN allowed
the variable type to be explicit in the name.  Names that began with the letters I, J, K, L, M, or N were implicitly integers,
the rest were implicitly single precision floating point numbers.  Explicit type declaration was available, but little used.

Experience in software engineering caused explicit data typing to take hold; a variable could not be used until it had been
explicitly declared and given a data type.  The reason for this change in policy can be seen in the following fragment of
old–style FORTRAN code, which represents a part of a commercial program that had been in use six years before the
problem was found.  Folks, this was your defense dollars at work.

      SUBROUTINE CLOUDCOLOR (LAT, LONG, C1, C2, C3)

C     FIRST GET THE CLOUD COVER DENSITY

      DENSITY = CLOUDDENSITY (LAT, L0NG)

C     NOW GET THE COLOR OF THE REFLECTED LIGHT

      GETCOLOR (DENSITY, C1, C2, C3)

      RETURN

Before reading the explanation of the problem, the reader should attempt to scan the code above and discover the problem.
Code such as this would compile under the old FORTRAN, and is unusual only for having comments (denoted by the “C” in
column 1).  While there is no explicit variable typing, none was required.  Variables beginning with “L” were integers and those
beginning with “C” and “D” were real numbers.  This was as intended by the design.

This is a map–oriented problem.  The variable “LAT” appears to reference a latitude (in degrees) on a map, and is actually
supposed to do so.  But note the reference to longitude on the map.  It appears to be denoted by “LONG”, but a careful
reader will note that there are two variables associated longitude; these are “LONG” and “L0NG”.  Reader, be honest.
Did you really note the two spellings, one with the letter “O” and the other with the digit “0”?

Within the context of a FORTRAN subroutine, the appearance of a variable as an argument in the line defining the
subroutine immediately gives it a definition.  Thus, the appearance of the variable LONG in the first line implicitly
declared it as an integer and made it useable.

What about the stray variable L0NG?  The semantics of older FORTRAN allowed a variable to be declared by
simple use.  On first occurrence, it was initialized to a variant of zero and all further use would develop that value.
 In the code fragment paraphrased above, there was only one use of “L0NG”, which occurred in the call to the cloud map.
So, while the simulation was attempting to compute cloud covers and spectral densities over the mid Pacific, it was always
 returning the data for either London or a location in Western Africa (Longitude = 0°).

The problem, as noted above, could have been avoided by use of the cross reference map provided by every FORTRAN
compiler; indeed it was this tool that was used to find it.  This map has a list of every variable name and other label used in
a module (program, subroutine, or function), the line at which it was defined or assigned a value, and every line in which it
was used.  Reading such a listing was tedious; most programmers did not do it.  Had our programmer read it, she would have discovered entries similar to the following.

L0NG   3*
LONG   1*

In the above subroutine, with the incorrectly spelled “L0NG” replaced by “LONG”, the symbol table would have an appearance that might be interpreted to contain the following.

Label

Data Type

Storage

Address

C1

Single Float

4 bytes

Some value

C2

Single Float

4 bytes

Some value

C3

Single Float

4 bytes

Some value

DENSITY

Single Float

4 bytes

Some value

LAT

Integer

2 bytes

Some value

LONG

Integer

2 bytes

Some value

It is the appearance of this type of symbol table, along with a data type reference for each of the labels, that causes the
appearance of true variables in a program as opposed to labels.  Once a label has been explicitly declared (and all proper
declarations are now explicit), any operation on that label will be appropriate for the data type.  Put another way, the
compiler now has the responsibility for proper data typing; it has been taken from the programmer.

For the remainder of this chapter, we shall be using IBMâ 370 Assembler.  The following program is roughly equivalent
to the MARIE code; the HALT has been removed.

         LD  0,X        LOAD REGISTER 0 FROM ADDRESS X

         AD  0,Y        ADD VALUE AT ADDRESS Y

         STD 0,Z        STORE RESULT INTO ADDRESS Z

         More code

X        DC  D‘3.0’     DOUBLE-PRECISION FLOAT

Y        DC  D‘4.0’

Z        DC  D‘0.0’

The symbols LD, AD, and STD would be identified as assembler language operations, and
the symbol 0 would be identified as a reference to register 0.  The S/370 had four floating point registers, numbered 0, 2, 4, and 6.
Each had a length of 64 bits, appropriate for double precision floating point format.  The symbols X, Y, and Z are declared as
double precision floating point, and each is initialized.

In the above fragments, we see two independent processes at work.

      1)   Use of data declarations to reserve space in memory to
            be associated with labeled addresses.

      2)   Use of assembly code to perform operations on these data.

Note that these are inherently independent.  It is the responsibility of the coder to apply the operations to the correct data types.
Occasionally, it is proper to apply a different (and apparently inconsistent) operation to a data type.  Consider the following.

XX      DS  D    Double-precision floating point

All that really says is “Set aside an eight–byte memory area, and associate it with the symbol XX.”  Any eight–byte data
item could be placed here, even a 15–digit packed decimal format.
(This is commonly done; check your notes on CVB and CVD.)

To show what could happen, and commonly does in student programs, we rewrite the above fragment,
using some operations that are not consistent with the data types.

         LD  0,X         LOAD REGISTER 0 FROM ADDRESS X

         AD  0,Y         ADD VALUE AT ADDRESS Y

         STD 0,Z         STORE RESULT INTO ADDRESS Z

X        DC  E‘3.0’      SINGLE-PRECISION FLOAT, 4 BYTES

Y        DC  E‘4.0’      ANOTHER SINGLE-PRECISION

Z        DC  D‘0.0’      A DOUBLE PRECISION

The first instruction “LD  0,X” will go to address X and extract the next eight bytes.  This will be four bytes for 3.0
and four bytes for 4.0.  The value retrieved, represented in raw hexadecimal will be 0x4130 0000 4140 0000,
which can represent a double–precision number with value slightly larger than 3.0.  Had X and Y been properly
declared, the value retrieved would have been 0x4130 0000 0000 0000.

Examples from a Modern Compiler

Consider the following fragments of Java code.

double x = 3.0;  // 64 bits or eight bytes

double y = 4.0;  // 64 bits or eight bytes

double z = 0.0;  // 64 bits or eight bytes

// More declarations and code here.

z = x + y;       // Do the addition that is
                 // proper for this data type.

                 // Here, it is double-precision
                 // floating point addition.

Note that the compiler will interpret the source–language statement
z = x + y” according to the data types of the operands.

Here is more code, similar to the first fragment.  Note the two data types involved.

float  a = 3.0;  // 32 bits or four bytes

float  b = 4.0;  // 32 bits or four bytes

float  c = 0.0;  // 32 bits or four bytes

double x = 3.0;  // 64 bits or eight bytes

double y = 4.0;  // 64 bits or eight bytes

double z = 0.0;  // 64 bits or eight bytes

// More declarations and code here.

c = a + b;       // Single-precision floating-point
                 // addition is done here
z = x + y;       // Double-precision floating-point
                 // addition is done here

The operations “c = a + b” and “z = x + y” have no meaning,
apart from the data types recorded by the compiler.


In order to elaborate the above claim that the operations have no meaning apart from the data types, let us consider the
assembler language that might be produced were the Java code actually compiled on a S/370 and not interpreted
by the JVM (Java Virtual Machine).

// c = a + b ;
         LE  0,A      Load  single precision float
         AE  0,B      Add   single precision float
         STE 0,C      Store single precision float

// z = x + y ;
         LD  2,X      Load  double precision float
         AD  2,Y      Add   double precision float
         STD 2,Z      Store double precision float

Note that, when possible, the compiler will avoid immediate reuse of registers, in an attempt to keep as much data in
local registers for later use.  The code is more efficient, and is less likely to give rise to “register spillage” in which the
contents of a register are written back to main memory.  Memory reads and writes are time–consuming processes,
each possibly taking multiple tens of CPU clock cycles.

Modern compilers devote a large amount of computation to devising a register mapping scheme (allocation of values
to registers) that will minimize the register spillage in arithmetic operations of moderate complexity.
Consider the following example.

double v = 0.0, w = 0.0, x = 3.0, y = 4.0, z = 5.0 ;

w = x + y ;

v = x + y + z ;

The example below shows inefficient code of the type actually emitted by an early 1970’s era compiler.  The modern
compiler keeps the sum x + y in register 0 and reuses it as a partial sum in the next result x + y + z.

            Older Compiler                     Modern Compiler

     LD  0, X           LD  0, X
     AD  0, Y           AD  0, Y
     STD 0, W           STD 0, W

     LD  0, X
     AD  0, Y
     AD  0, Z           AD  0, Z
     STD 0, V           STD 0, V

In the above example, code efficiency is obtained by retaining the partial sum “X + Y” in the register and not repeating
the two earlier assembly language instructions.  Often times, in less sophisticated compilers one may see code such as
the following sequence.

         STD 2, W       Store the value
    LD  2, W       Now get the value back into the register.

Here we see the silliness of loading a register with a value that it must already contain.  This was the main flaw of
the early simplistic compilers; each statement was treated individually. Modern compilers are considerably more sophisticated.


Summary

The most obvious conclusion is that it is not appropriate to discuss assembler language code in terms of variables.
The name “variable” should be reserved for higher–level compiled languages in which a data type is attached to
each data symbol.  The data type at least indicates the amount of storage space to be associated with the label and
what operations are appropriate for use with it; the type may contain much more information.

Here is a brief comparison.



Assembler

Compiled HLL

Data type

Operation, as indicated by
the OP Code, such as A, AD, AE, AP, etc.

Data declaration, which
determines the operations
applied to the data

Attributes of the label

Address

Address

(Storage size)  This is used in
Pass 1 of the Assembler, but
not kept for future use.

Storage size



Data type as declared

We closed this chapter with a brief discussion of compiler technology, focusing on the simplicities of earlier
compilers that lead to such inefficient code.  As mentioned in the first chapter of this textbook, some early
compilers were very inefficient and considered each statement of high–level code in isolation from all others.
This lead to very inefficient executable code, and encouraged the programmer to rewrite parts of the assembler
code emitted by the compiler in order to obtain acceptable performance.
