Views of Memory

We begin with a number of views of computer memory and comment on their use.

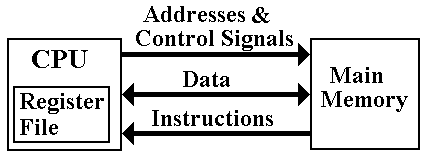

The simplest view of memory is that presented at the ISA (Instruction Set Architecture)
level.  At this level, memory is a monolithic addressable unit.

At this level, the memory is a repository for data and instructions, with no internal
structure apparent.  For some very primitive computers, this is the actual structure.

In this view, the CPU issues addresses and control signals.  It receives instructions
and data from the memory and writes data back to the memory.

This is the view that suffices for many high–level language programmers.

In no modern architecture does the CPU write instructions to the main memory.


Some Tricks to Enhance Performance

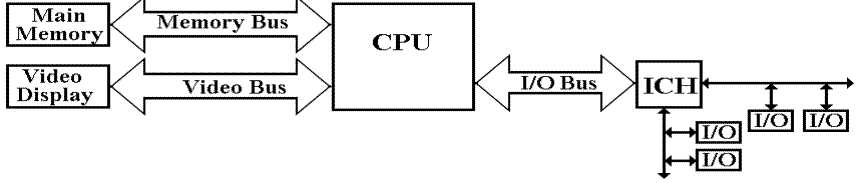

We have already noted the use of multiple high–speed busses to allow
efficient access to graphics and memory.

This design allows the memory system to deliver data at the full memory bus speed.

The problem is that simple memory cannot do this.


Memory: What We Want

Here is a simple picture of what we would like to have from the memory system.

             High Clock Speed          High Data Rate                           Fast

             Inexpensive                    Inexpensive                                 Inexpensive

             Physically small            Don’t care if it is large,              Physically small.
                                                    if it is fast.                                   Very large capacity.

What we have

             What we want,               What we want.                            Either: fast, somewhat
             but for heat                    Better busses coming soon.        large & expensive , or
             problems.                                                                           slow, small, & cheap.




Available Technologies

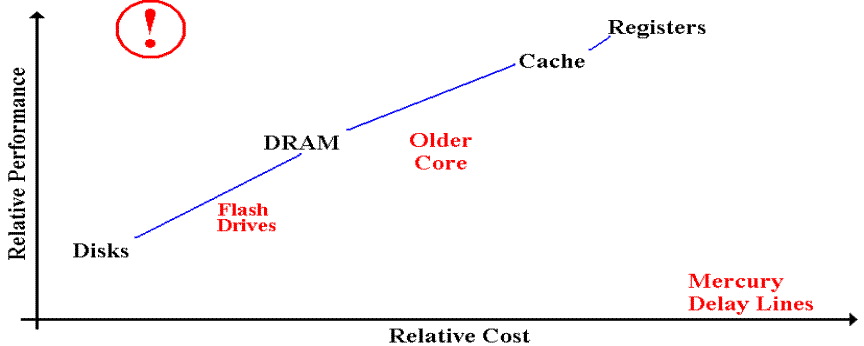

For the moment, we have a trade–off: cheap & slow vs. fast & more expensive.

Note that slow & more expensive is not considered as a valid option.

Note that the costs of disks, DRAM, and SRAM are changing daily.

An achievement, such as indicated by the icon at the top left, would change everything.


The Logical Multi–Level View of Memory

In a course such as this, we want to investigate the internal memory structures that
allow for more efficient and secure operations.

The logical view for this course is a three–level view with
           cache memory, main memory, and virtual memory.

The primary memory is backed by a “DASD” (Direct Access Storage Device), an
external high–capacity device.

While “DASD” is a name for a device that meets certain specifications, the standard
disk drive is the only device currently in use that “fits the bill”.  Thus DASD = Disk.

This is the view we shall take when we analyze cache memory.

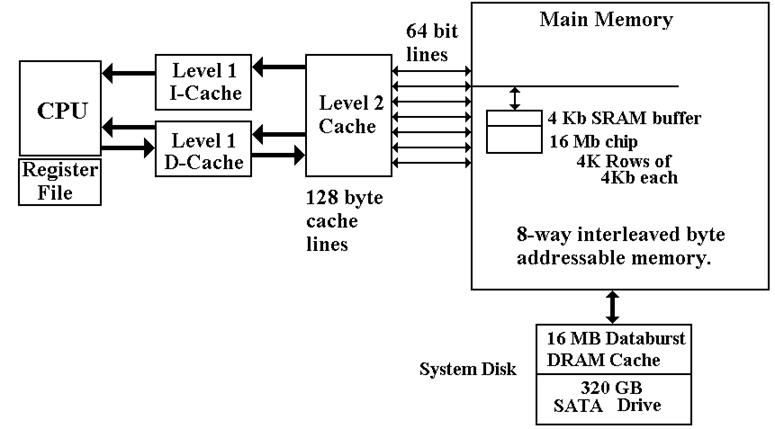

A More Realistic View of Multi–Level Memory

Two questions:       Why a multilevel cache?

                                Why a split level–1 cache?

We shall answer these questions after we cover another topic.


The Principle of Locality

It is the principle of locality that makes this multi–level memory hierarchy work.

There are a number of ways to state this principle of locality, which refers to the
observed tendency of computer programs to issue addresses in a small range.

    Temporal Locality            if a program references an address,
                                                it will likely address it again.

    Spatial Locality                 if a program references an address,
                                                the next address issues will likely be “close”.

    Sequential Locality           programs tend to issue sequential addresses,
                                                executing one instruction after another.

In 1968, Peter J. Denning, noted what he called the “working set”, which refers
to the tendency of computer programs to spend considerable periods of time issuing
addresses within a small range.

The idea of locality is also the basis of cache memory, where a smaller amount of
the referenced address space is stored for faster use.


Locality and the Working Set

In the Virtual Memory arena, this causes a small number of pages to be read into the
main memory and used continuously for a significant time.  It is this set of pages
that is precisely the working set.

Here is a figure showing program access to memory as a function of execution time.

It is the principle of locality that makes cache memory and virtual memory work.


Generic Primary / Secondary Memory

This lecture covers two related subjects: Virtual Memory and Cache Memory.

In each case, we have a fast primary memory backed by a bigger secondary memory.



The “actors” in the two cases are as follows:

Technology               Primary Memory             Secondary Memory                                   Block

Cache Memory          SRAM Cache                    DRAM Main Memory                                   Cache Line

Virtual Memory        DRAM Main Memory       Disk Memory                                   Page

Access Time              TP (Primary Time)            TS (Secondary Time)



Effective Access Time:  TE = h · TP + (1 – h) · TS, where h (the primary hit rate) is
the fraction of memory accesses satisfied by the primary memory; 0.0
£ h £ 1.0.

This formula does extend to multi–level caches.  For example a two–level cache has
        TE = h1
· T1 + (1 – h1) · h2 · T2 + (1 – h1) · (1 – h2) · TS.

NOTATION WARNING: In some contexts, the DRAM main memory is called
“primary memory”.  I never use that terminology when discussing multi–level memory.


Examples: Cache Memory

Suppose a single cache fronting a main memory, which has 80 nanosecond access time.

Suppose the cache memory has access time 10 nanoseconds.

If the hit rate is 90%, then      TE    = 0.9 · 10.0 + (1 – 0.9) · 80.0
                                                `       =  0.9
· 10.0 +  0.1 · 80.0 = 9.0 + 8.0 = 17.0 nsec.

If the hit rate is 99%, then      TE    = 0.99 · 10.0 + (1 – 0.99) · 80.0
                                                `       =  0.99
· 10.0 +  0.01 · 80.0 = 9.9 + 0.8 = 10.7 nsec.

Suppose a L1 cache with T1 = 4 nanoseconds and h1 = 0.9
Suppose a L2 cache with T2 = 10 nanoseconds and h2 = 0.99
This is defined to be the number of hits on references that are a miss at L1.
Suppose a main memory with TS = 80.0

TE    = h1 · T1 + (1 – h1) · h2 · T2 + (1 – h1) · (1 – h2) · TS.
        = 0.90
· 4.0 + 0.1 · 0.99 · 10.0 + 0.1 · 0.01 · 80.0
        = 0.90
· 4.0 + 0.1 · 9.9 + 0.1 · 0.80
        = 3.6 + 0.99 + 0.08 = 4.67 nanoseconds.

Note that with these hit rates, only 0.1 · 0.01 = 0.001 = 0.1% of the memory
references are handled by the much slower main memory.


Why Multi–Level Cache Memory?

Suppose a byte–addressable memory of size 2N bytes.
This requires N address bits and an N–to–2N decoder.

Smaller decoders are faster than large decoders, which have more levels of circuitry.

Smaller memories are faster than larger memories.

Consider a 2 MB SRAM memory used as a cache.  Suppose its access time is 10 ns.

Couple this with a 16 KB SRAM L1 cache that has a 2 nanosecond access time.

h = 0.5     TE = 0.5 · 2.0 + 0.5 · 10.0 = 1.0 + 5.0 = 6.0 nanoseconds

h = 0.8     TE = 0.8 · 2.0 + 0.2 · 10.0 = 1.6 + 2.0 = 3.6 nanoseconds

Even at a modest hit rate, we get a useable improvement.


Why A Split L1 Cache?

The Pentium design calls for a 32 KB L1 cache.  Why is it split
into an I cache and D cache (Instruction Cache and Data Cache), each 16 KB?

This is related to an advanced CPU design trick called “pipelining”.

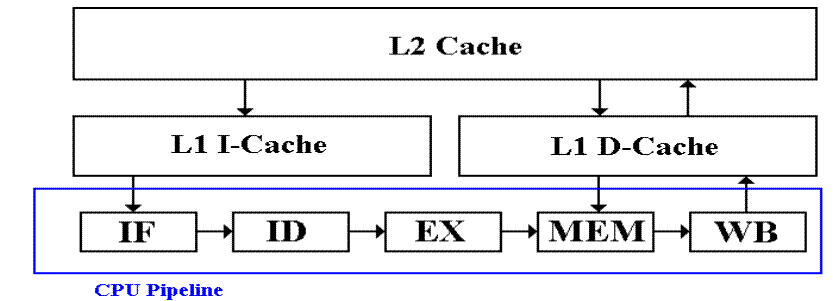

This is the pipeline of the MIPS design.  For every clock cycle, one instruction and one
data element might be read.  With two L1 cache memories, this is possible.

Instruction Fetch    Instruction Decode    Execute    Memory Access    Write Back


Precise Definition of Virtual Memory

Virtual memory has a common definition that so frequently represents its actual
implementation that we may use it.  However, I shall give its precise definition.

Virtual memory is a mechanism for translating logical addresses (as issued by
an executing program) into actual physical memory addresses.

This definition alone provides a great advantage to an Operating System, which can then
allocate processes to distinct physical memory locations according to some optimization.

Secondary Storage
Although this is a precise definition, virtual memory has always been implemented by
pairing a fast DRAM Main Memory with a bigger, slower “backing store”.  Originally,
this was magnetic drum memory, but it soon became magnetic disk memory.

The invention of time–sharing operating systems introduced another variant of VM,
now part of the common definition.  A program and its data could be “swapped out” to
the disk to allow another program to run, and then “swapped in” later to resume.


Common (Accurate) Definition of Virtual Memory

Virtual memory allows the program to have a logical address space much larger than the
computers physical address space.  It maps logical addresses onto physical addresses and
moves “pages” of memory between disk and main memory to keep the program running.

An address space is the range of addresses, considered as unsigned integers, that can be
generated.  An N–bit address can access 2N items, with addresses 0 … 2N – 1.

16–bit address      216 items    0 to                65535
20–bit address      220 items    0 to          1,048,575
32–bit address      232 items    0 to   4,294,967,295

In all modern applications, the physical address space is no larger than the logical address
space.   It is often somewhat smaller than the logical address space.  As examples, we use
a number of machines with 32–bit logical address spaces.

                        Machine                  Physical Memory         Logical Address Space
                        VAX–11/780            16 MB                            4 GB (4, 096 MB)
                        Pentium (2004)        128 MB                          4 GB
                        Desktop Pentium      512 MB                          4 GB
                        Server Pentium        4 GB                              4 GB

NOTE:  The MAR structure usually allows the two address spaces to be equal.

Generic Primary / Secondary Memory View

A small fast expensive memory is backed by a large, slow, cheap memory.

Memory references are first made to the smaller memory.
        1.     If the address is present, we have a “hit”.
        2.     If the address is absent, we have a “miss” and must transfer the addressed
                item from the slow memory.  For efficiency, we transfer as a unit the block
                containing the addressed item.

The mapping of the secondary memory to primary memory is “many to one” in that
each primary memory block can contain a number of secondary memory addresses.

To compensate for each of these, we associate a tag with each primary block.

For example, consider a byte–addressable memory with 24–bit addresses and 16 byte
blocks.  The memory address would have six hexadecimal digits.

Consider the  24–bit address 0xAB7129.  The block containing that address is every item
with address beginning with
0xAB712: 0xAB7120, 0xAB7121, … , 0xAB7129, 0xAB712A, … 0xAB712F.

The primary block would have 16 entries, indexed 0 through F.  It would have the 20–bit
tag 0XAB712 associated with the block, either explicitly or implicitly.


Valid and Dirty Bits

At system start–up, the faster memory contains no valid data, which are copied as needed
from the slower memory.

Each block would have three fields associated with it

        The tag field   (discussed above)   identifying the memory addresses contained

        Valid bit          set to 0 at system start–up.
                                set to 1 when valid data have been copied into the block

        Dirty bit          set to 0 at system start–up.
                                set to 1 whenever the CPU writes to the faster memory
                                set to 0 whenever the contents are copied to the slower memory.


Associative Memory

Associative memory is “content addressable” memory.  The contents of the memory
are searched in one memory cycle.

Consider an array of 256 entries, indexed from 0 to 255 (or 0x0 to 0xFF).

Suppose that we are searching the memory for entry 0xAB712.

Normal memory would be searched using a standard search algorithm, as learned in
beginning programming classes.
        If the memory is unordered, it would take on average 128 searches to find an item.
        If the memory is ordered, binary search would find it in 8 searches.

Associative memory would find the item in one search.  Think of the control circuitry as
“broadcasting” the data value (here 0xAB712) to all memory cells at the same time.  If
one of the memory cells has the value, it raises a Boolean flag and the item is found.

We do not consider duplicate entries in the associative memory.  This can be handled by
some rather straightforward circuitry, but is not done in associative caches.


An Associative Matcher

Suppose that a cache line is identified by a four–bit cache tag.

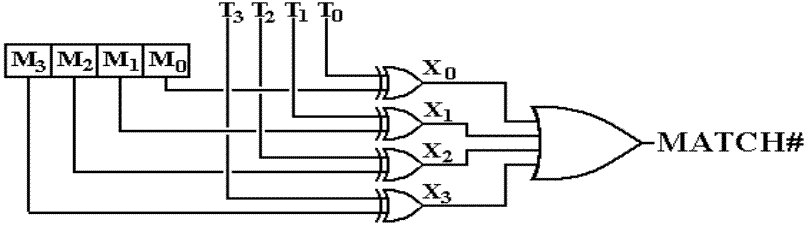

This is the circuit to generate the match signal, MATCH# (asserted low).

Remember the property of the Exclusive OR gate.  XJ = 0 if and only if TJ = MJ.

TJ

MJ

XJ = TJ Å MJ

0

0

0

0

1

1

1

0

1

1

1

0

MATCH# is 0 if and only if all XJ are 0, hence all TJ = MJ.


Associative Cache

We now focus on cache memory, returning to virtual memory only at the end.
        Primary memory     = Cache Memory    (assumed to be one level)
        Secondary memory = Main DRAM

Assume a number of cache lines, each holding 16 bytes.  Assume a 24–bit address.

The simplest arrangement is an associative cache.  It is also the hardest to implement.

Divide the 24–bit address into two parts: a 20–bit tag and a 4–bit offset.

Bits

23 – 4

3 – 0

Fields

Tag

Offset

A cache line in this arrangement would have the following format.

D bit

V Bit

Tag

16 indexed entries

0

1

0xAB712

M[0xAB7120] … M[0xAB712F]

The placement of the 16 byte block of memory into the cache would be determined by
a cache line replacement policy.  The policy would probably be as follows:
        1.     First, look for a cache line with V = 0.  If one is found, then it is “empty”
                and available, as nothing is lost by writing into it.

        2.     If all cache lines have V = 1, look for one with D = 0.  Such a cache line
                can be overwritten without first copying its contents back to main memory.

Direct–Mapped Cache

This is simplest to implement, as the cache line index is determined by the address.

Assume 256 cache lines, each holding 16 bytes.  Assume a 24–bit address.
Recall that 256 = 28, so that we need eight bits to select the cache line.

Divide the 24–bit address into three fields: a 12–bit explicit tag, an 8–bit line number,
and a 4–bit offset within the cache line.  Note that the 20–bit memory tag is divided
between the 12–bit cache tag and 8–bit line number.

Bits

23 – 12

11 – 4

3 – 0

Cache View

Tag

Line

Offset

Address View

Block Number

Offset

Consider the address 0xAB7129. It would have
                Tag =      0xAB7
                Line =     0x12
                Offset =   0x9

Again, the cache line would contain M[0xAB7120] through M[0xAB712F].
The cache line would also have a V bit and a D bit (Valid and Dirty bits).

This simple implementation often works, but it is a bit rigid.  An design that is a blend
of the associative cache and the direct mapped cache might be useful.


Set–Associative Caches

An N–way set–associative cache uses direct mapping, but allows a set of N memory
blocks to be stored in the line.  This allows some of the flexibility of a fully associative
cache, without the complexity of a large associative memory for searching the cache.

Suppose a 2–way set–associative implementation of the same cache memory.

Again assume 256 cache lines, each holding 16 bytes.  Assume a 24–bit address.
Recall that 256 = 28, so that we need eight bits to select the cache line.

Consider addresses 0xCD4128 and 0xAB7129.  Each would be stored in cache line
0x12.  Set 0 of this cache line would have one block, and set 1 would have the other.



Entry 0

Entry 1

D

V

Tag

Contents

D

V

Tag

Contents

1

1

0xCD4

M[0xCD4120] to

M[0xCD412F]

0

1

0xAB7

M[0xAB7120] to M[0xAB712F]




Virtual Memory (Again)

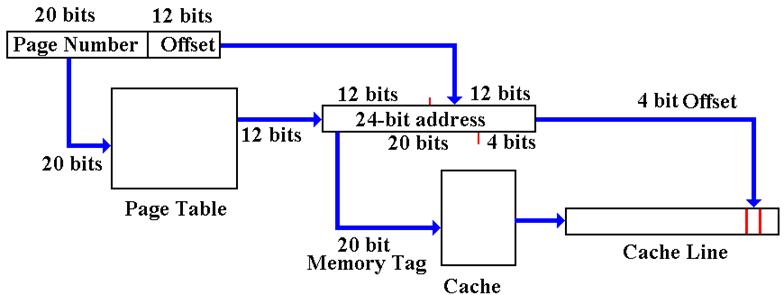

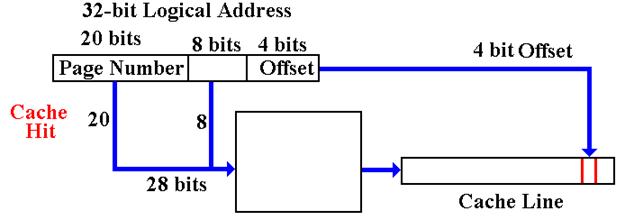

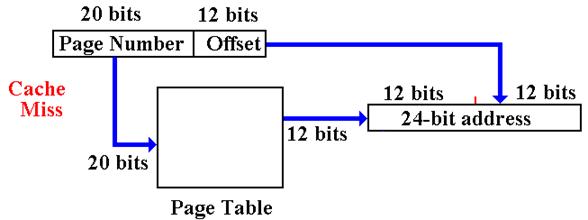

Suppose we want to support 32–bit logical addresses in a system in which physical
memory is 24–bit addressable.

We can follow the primary / secondary memory strategy seen in cache memory.
We shall see this again, when we study virtual memory in a later lecture.



For now, we just note that the address structure of the disk determines the structure of
virtual memory.  Each disk stores data in blocks of 512 bytes, called sectors.

In some older disks, it is not possible to address each sector directly.  This is due to
the limitations of older file organization schemes, such as FAT–16.

FAT–16 used a 16–bit addressing scheme for disk access.  Thus 216 sectors could be
addressed.  Since each sector contained 29 bytes, the maximum disk size under
“pure FAT–16” is 225 bytes = 25
· 220 bytes = 32 MB.

To allow for larger disks, it was decided that a cluster of 2K sectors would be the smallest
addressable unit.  Thus one would get clusters of 1,024 bytes, 2,048 bytes, etc.

Virtual memory transfers data in units of clusters, the size of which is system dependent.


Examples of Cache Memory

We need to review cache memory and work some specific examples.

The idea is simple, but fairly abstract.  We must make it clear and obvious.

While most of this discussion does apply to pages in a Virtual Memory system,
we shall focus it on cache memory.

To review, we consider the main memory of a computer.  This memory might have a size
of 384 MB, 512 MB, 1GB, etc.  It is divided into blocks of size 2K bytes, with K > 2.

In general, the N–bit address is broken into two parts, a block tag and an offset.
                The most significant (N – K) bits of the address are the block tag
                The least significant K bits represent the offset within the block.

We use a specific example for clarity.
                byte addressable memory
                a 24–bit address
                cache block size of 16 bytes, so the offset part of the address is K = 4 bits.

Remember that our cache examples use byte addressing for simplicity.


EXAMPLE: The Address 0xAB7129

In our example, the address layout for main memory is as follows:

Divide the 24–bit address into two parts: a 20–bit tag and a 4–bit offset.

Bits

23 – 4

3 – 0

Fields

Tag

Offset

Let’s examine the sample address in terms of the bit divisions above.

Bits:

23 – 20

19 – 16

15 – 12

11 – 8

7 – 4

3 – 0

Hex Digit

A

B

7

1

2

9

Field

0xAB712

0x09



So, the tag field for this block contains the value 0xAB712.

The tag field of the cache line must also contain this value, either explicitly or
implicitly.  More on this later.



Remember:    It is the cache line size that determines the size of the blocks in
                        main memory.  They must be the same size, here 16 bytes.


What Does The Cache Tag Look Like?

All cache memories are divided into a number of cache lines.  This number is also
a power of two, usually between 256 = 28 and 216 (for larger L2 caches).

Our example used in this lecture calls for 256 cache lines.

Associative Cache

As a memory block can go into any available cache line, the cache tag must represent
the memory tag explicitly:  Cache Tag = Block Tag.  In our example, it is 0xAB712.

Direct Mapped and Set–Associative Cache

For any specific memory block, there is exactly one cache line that can contain it.

Suppose an N–bit address space.  2L cache lines, each of 2K bytes.

Address Bits

(N – L – K) bits

L bits

K bits

Cache Address

Cache Tag

Cache Line

Offset

Memory Address

Memory Block Tag

Offset

To retrieve the memory block tag from the cache tag, just append the cache line number.

In our example:      The Memory Block Tag = 0xAB712
                                Cache Tag                       = 0xAB7
                                Cache Line                      = 0x12


Example: Associative Cache for Address 0xAB7129

Suppose that the cache line has valid data and that the memory at address 0xAB7129
has been read by the CPU.  This forces the block with tag 0xAB712 to be read in.

Offset

Contents

0x00

M [ 0xAB7120 ]

0x01

M [ 0xAB7121 ]

0x02

M [ 0xAB7122 ]

0x03

M [ 0xAB7123 ]

0x04

M [ 0xAB7124 ]

0x05

M [ 0xAB7125 ]

0x06

M [ 0xAB7126 ]

0x07

M [ 0xAB7127 ]

0x08

M [ 0xAB7128 ]

0x09

M [ 0xAB7129 ]

0x0A

M [ 0xAB712A ]

0x0B

M [ 0xAB712B ]

0x0C

M [ 0xAB712C ]

0x0D

M [ 0xAB712D ]

0x0E

M [ 0xAB712E ]

0x0F

M [ 0xAB712F ]



Cache Tag = 0xAB712

Valid = 1

Dirty = 0









Example: Direct Mapped Cache for Address 0xAB7129

Suppose that the cache line has valid data and that the memory at address 0xAB7129
has been read by the CPU.  This forces the block with tag 0xAB712 to be read in.

Offset

Contents

0x00

M [ 0xAB7120 ]

0x01

M [ 0xAB7121 ]

0x02

M [ 0xAB7122 ]

0x03

M [ 0xAB7123 ]

0x04

M [ 0xAB7124 ]

0x05

M [ 0xAB7125 ]

0x06

M [ 0xAB7126 ]

0x07

M [ 0xAB7127 ]

0x08

M [ 0xAB7128 ]

0x09

M [ 0xAB7129 ]

0x0A

M [ 0xAB712A ]

0x0B

M [ 0xAB712B ]

0x0C

M [ 0xAB712C ]

0x0D

M [ 0xAB712D ]

0x0E

M [ 0xAB712E ]

0x0F

M [ 0xAB712F ]



Cache Line = 0x12

Cache Tag = 0xAB7

Valid = 1

Dirty = 0

Because the cache line is always the lower order
bits of the memory block tag, those bits
do not need to be part of the cache tag.




Reading and Writing in a Cache Memory

Let’s begin our review of cache memory by considering the two processes:

        CPU Reads from Cache

        CPU Writes to Cache

Suppose for the moment that we have a direct mapped cache, with line 0x12 as follows:

Tag

Valid

Dirty

Contents (Array of 16 entries)

0xAB7

1

0

M[0xAB7120] to M[0xAB712F]

Line Number: 0x12



Since the cache line has contents, by definition we must have Valid = 1.

For this example, we assume that Dirty = 0 (but that is almost irrelevant here).

Read from Cache.

The CPU loads a register from address 0xAB7123.  This is read directly from the cache.

Write to Cache

The CPU copies a register into address 0xAB712C.  The appropriate page is present in
the cache line, so the value is written and the dirty bit is set; Dirty = 1.


Now What?

Here is a question that cannot occur for reading from the cache.
Writing to the cache has changed the value in the cache.
The cache line now differs from the corresponding block in main memory.

The two main solutions to this problem are called “write back” and “write through”.

Write Through

In this strategy, every byte that is written to a cache line is immediately written back to
the corresponding memory block.  Allowing for the delay in updating main memory,
the cache line and cache block are always identical.

Advantages:            This is a very simple strategy.  No “dirty bit” needed.
Disadvantages:       This means that writes to cache proceed at main memory speed.

Write Back

In this strategy, CPU writes to the cache line do not automatically cause updates of the
corresponding block in main memory.

The cache line is written back only when it is replaced.
Advantages:            This is a fast strategy.  Writes proceed at cache speed.
Disadvantages:       A bit more complexity and thus less speed.

Example: Cache Line Replacement

For simplicity, assume direct mapped caches.

Assume that memory block 0xAB712 is present in cache line 0x12.

We now get a memory reference to address 0x895123.  This is found in memory block
0x89512, which must be placed in cache line 0x12.

The following holds for each of a memory read from or memory write to 0x895123.

Process

    1.  The valid bit for cache line 0x12 is examined.  If (Valid = 0) go to Step 5.

    2.  The memory tag for cache line 0x12 is examined and compared to the desired
         tag 0x895.  If (Cache Tag = 0x895) go to Step 6.

    3.  The cache tag does not hold the required value.  Check the dirty bit.
         If (Dirty = 0) go to Step 5.

    4.  Here, we have (Dirty = 1).  Write the cache line back to memory block 0xAB712.

    5.  Read memory block 0x89512 into cache line 0x12.  Set Valid = 1 and Dirty = 0.

    6.  With the desired block in the cache line, perform the memory operation.


More on the Mapping Types

We have three different major strategies for cache mapping.

Direct Mapping     this is the simplest strategy, but it is rather rigid.
                                One can devise “almost realistic” programs that defeat this mapping.
                                It is possible to have considerable page replacement with a cache
                                        that is mostly empty.

Fully Associative   this offers the most flexibility, in that all cache lines can be used.
                                This is also the most complex, because it uses a larger associative
                                        memory, which is complex and costly.

N–Way Set Associative
                                This is a mix of the two strategies.
                                It uses a smaller (and simpler) associative memory.
                                Each cache line holds N = 2K sets, each the size of a memory block.
                                Each cache line has N cache tags, one for each set.




Example: 4–Way Set-Associative Cache

Based on the previous examples, let us imagine the state of cache line 0x12.

Tag

Valid

Dirty

Contents: Arrays of 16 bytes.

0xAB7

1

1

M[0xAB7120] through M[0xAB712F]

0x895

1

0

M[0x895120] through M[0x89512F]

0xCD4

1

1

M[0xCD4120] through M[0xCD412F]

0

0

0

Unknown

Memory references to blocks possibly mapped to this cache line.

        1.     Extract the cache tag from the memory block number.

        2.     Compare the tag to that of each valid set in the cache line.
                If we have a match, the referenced memory is in the cache.

Say we have a reference to memory location 0x543126, with memory tag 0x54312.
This maps to cache line 0x12, with cache tag 0x543.

The replacement policy here is simple.   There is an “empty set”, indicated by its valid
bit being set to 0.  Place the memory block there.

If all sets in the cache line were valid, a replacement policy would probably look for a
set with Dirty = 0, as it could be replaced without being written back to main memory.

Relationships Between the Cache Mapping Types

Consider variations of mappings to store 256 memory blocks.

Direct Mapped Cache             256 cache lines

“1–Way Set Associative”       256 cache lines                  1 set per line

2–Way Set Associative          128 cache lines                 2 sets per line

4–Way Set Associative          64 cache lines                   4 sets per line

8–Way Set Associative          32 cache lines                   8 sets per line

16–Way Set Associative        16 cache lines                 16 sets per line

32–Way Set Associative        8 cache lines                   32 sets per line

64–Way Set Associative        4 cache lines                   64 sets per line

128–Way Set Associative      2 cache lines                 128 sets per line

256–Way Set Associative      1 cache line                  256 sets per line

Fully Associative Cache                                                            256 sets

N–Way Set Associative caches can be seen as a hybrid of the Direct Mapped Caches
and Fully Associative Caches

As N goes up, the performance of an N–Way Set Associative cache improves.  After
about N = 8, the improvement is so slight as not to be worth the additional cost.

Example: Both Virtual Memory and Cache Memory

Any modern computer supports both virtual memory and cache memory.

Consider the following example, based on results in previous lectures.

        Byte–addressable memory

        A 32–bit logical address, giving a logical address space of 232 bytes.

        224 bytes of physical memory, requiring 24 bits to address.

        Virtual memory implemented using page sizes of 212 = 4096 bytes.

        Cache memory implemented using a fully associative cache with
                cache line size of 16 bytes.

The logical address is divided as follows:

Bits

31 – 28

27 – 24

23 – 20

19 – 16

15 – 12

11 – 8

7 – 4

3 – 0

Field

Page Number

Offset in Page

The physical address is divided as follows:

Bits

23 – 20

19 – 16

15 – 12

11 – 8

7 – 4

3 – 0

Field

Memory Tag

Offset



VM and Cache: The Complete Process



We start with a 32–bit logical address.

The virtual memory system uses a page table to produce a 24–bit physical address.

The cache uses a 24–bit address to find a cache line and produce a 4–bit offset.

This is a lot of work for a process that is supposed to be fast.


The Virtually Mapped Cache

Suppose that we turn this around, using the high order 28 bits as a virtual tag.
If the addressed item is in the cache, it is found immediately.

A Cache Miss accesses the Virtual Memory system.

More on Virtual Memory: Can It Work?

When there is a cache miss, the addressed item is not in any cache line.

The virtual memory system must become active.  Is the addressed item in main memory,
or must it be retrieved from the backing store (disk)?

The page table is accessed.  If the page is present in memory, the page table has the
high–order 12 bits of that page’s physical address.

But wait!        The page table is in memory.
                        Does this imply two memory accesses for each memory reference?

This is where the TLB (Translation Look–aside Buffer) comes in.
It is a cache for a page table, more accurately called the “Translation Cache”.

The TLB is usually implemented as a split associative cache.
        One associative cache for instruction pages, and
        One associative cache for data pages.

A page table entry in main memory is accessed only if the TLB has a miss.


Memory Segmentation

Memory paging divides the address space into a number of equal sized blocks,
called pages.  The page sizes are fixed for convenience of addressing.

Memory segmentation divides the program’s address space into logical segments,
into which logically related units are placed.  As examples, we conventionally have
code segments, data segments, stack segments, constant pool segments, etc.

Each segment has a unique logical name.  All accesses to data in a segment must be
through a <name, offset> pair that explicitly references the segment name.

For addressing convenience, segments are usually constrained to contain an integral
number of memory pages, so that the more efficient paging can be used.

Memory segmentation facilitates the use of security techniques for protection.

All data requiring a given level of protection can be grouped into a single segment,
with protection flags specific to giving that exact level of protection.

All code requiring protection can be placed into a code segment and also protected.

It is not likely that a given segment will contain both code and data.  For this reason,
we may have a number of distinct segments with identical protection.
