Boolean
Algebra & Digital Logic
Boolean
algebra was developed by the Englishman George Boole, who published the basic
principles in the 1854 treatise An
Investigation of the Laws of Thought on Which to Found
the Mathematical Theories of Logic and Probabilities.
The
applicability to computing machines was discovered by three Americans
Claude Shannon Symbolic
Analysis of Relay and Switching Circuits, 1938.
George Stibitz An employee of Bell Labs, he developed a binary adder
using
mechanical relays in 1937, the model “K 1” adder
because
he built it at home on his kitchen table.
John Atanasoff He was probably the first to use purely electronic relays
(vacuum
tubes) to build a binary adder.
Boolean
algebra is a two–valued algebra based on the constant values denoted as either
FALSE, TRUE
0, 1
The
use of this algebra for computation is based on the fact that binary arithmetic
is based on two values, always
called “0” and “1”.
Basic
Boolean Operators
Boolean
algebra is defined in terms of two constants (defined above), which we
call “0” and “1”. Other courses will call these values “F” and
“T”.
Boolean
algebra is defined in terms of three basic operators, to which we shall add
a useful fourth operator. The three operators are NOT, AND, & OR.
Each
of these three basic operators is implemented by a basic electronic device
called a “logic gate”. We present the gates along with the
definition.
NOT This function takes one
input and produces one output. The gate
is shown
below. The circle at the right end of the triangle
is important.
Algebraically,
this function is denoted f(X) = X’ or f(X) =
.
The notation X’ is done for typesetting
convenience only; the notation is better.
The
evaluation of the function is simple:
= 1 and
= 0.
Basic
Boolean Operators (Part 2)
Logic OR
This
is a function of two Boolean variables.
We denote the logical OR of two Boolean
variables X and Y by “X + Y”. Some logic
books will use “X Ú Y”.
The
evaluation of the logical OR function is shown by a truth table
|
X |
Y |
X + Y |
|
0 |
0 |
0 |
|
0 |
1 |
1 |
|
1 |
0 |
1 |
|
1 |
1 |
1 |
Basic
Boolean Operators (Part 3)
Logic AND
This
is a function of two Boolean variables.
We denote the logical AND of two Boolean
variables X and Y by “X · Y”. Some logic books will use “X
Ù Y”.
The
evaluation of the logical AND function is shown by a truth table
|
X |
Y |
X · Y |
|
0 |
0 |
0 |
|
0 |
1 |
0 |
|
1 |
0 |
0 |
|
1 |
1 |
1 |
Another
Boolean Operator
While
not a basic Boolean operator, the exclusive OR is very handy.
Logic XOR
This
is a function of two Boolean variables.
We denote the logical XOR of two Boolean
variables X and Y by “X Å Y”. Most logic books seem to
ignore this function.
The
evaluation of the logical XOR function is shown by a truth table
|
X |
Y |
X Å Y |
|
0 |
0 |
0 |
|
0 |
1 |
1 |
|
1 |
0 |
1 |
|
1 |
1 |
0 |
From
this last table, we see immediately that
X Å 0 = X and X Å 1 =
Bitwise
Operations on Binary Integers
As binary integer
examples, I propose to use the ASCII codes for alphabetic characters.
‘A’ ‘N’
Upper case ASCII 0100 0001 0100 1110
Pattern for OR 0010 0000 0010 0000
This gives lower case 0110 0001 0110 1110
Lower case ASCII 0110 0001 0110 1110
Pattern
for AND 1101 1111 1101 1111
Upper case 0100 0001 0100 1110
More Boolean
Operations on Integers
Consider
the 8–bit binary number 0110 1001
The
logical NOT of this number is 1001 0110.
The
second value is the one’s–complement of the first value.
We
could show more examples. Here are a few
with 8–bit binary numbers.
0101 1000 0101 1000
+ 0011 0100 · 0011 0100
0111 1100 0001 0000
In
programming languages, these set or clear individual bits in a binary value.
One
might write the following code in some variant of Jave
lower_case = upper_case
| 0x20
The
lower case representation of a character is the logical OR of the upper case
representation and binary 0010 0000 (0x20).
Truth Tables
The
fact that any Boolean variable can assume only one of two possibly values can
be shown,
by induction, to imply the following.
For
N > 0, N Boolean variables can take only 2N different
combinations of values.
For
small values of N, we can use this to specify a function using a truth table
with 2N rows,
plus a header row to label the variables and the function.
|
N |
2N |
|
1 |
2 |
|
2 |
4 |
|
3 |
8 |
|
4 |
16 |
|
5 |
32 |
|
6 |
64 |
Four–variable
truth tables have 17 rows total. This is
just manageable.
Five–variable truth tables have 33 rows total.
This is excessive.
N–variable truth tables, for N > 5, are almost useless.
Sample Truth
Table
|
A |
B |
C |
F1(A, B, C) |
|
0 |
0 |
0 |
0 |
|
0 |
0 |
1 |
1 |
|
0 |
1 |
0 |
1 |
|
0 |
1 |
1 |
0 |
|
1 |
0 |
0 |
1 |
|
1 |
0 |
1 |
0 |
|
1 |
1 |
0 |
0 |
|
1 |
1 |
1 |
1 |
This truth table for 3
variables has 23 = 8 rows, plus a label row.
This
truth table forms a complete definition of the function. We shall later
give it another name, but can base
all our discussions on this table.
Another Sample
Truth Table
|
A |
B |
C |
F2(A, B, C) |
|
0 |
0 |
0 |
0 |
|
0 |
0 |
1 |
0 |
|
0 |
1 |
0 |
0 |
|
0 |
1 |
1 |
1 |
|
1 |
0 |
0 |
0 |
|
1 |
0 |
1 |
1 |
|
1 |
1 |
0 |
1 |
|
1 |
1 |
1 |
1 |
Two Truth
Tables in One
|
A |
B |
C |
F1(A, B, C) |
F2(A, B, C) |
|
0 |
0 |
0 |
0 |
0 |
|
0 |
0 |
1 |
1 |
0 |
|
0 |
1 |
0 |
1 |
0 |
|
0 |
1 |
1 |
0 |
1 |
|
1 |
0 |
0 |
1 |
0 |
|
1 |
0 |
1 |
0 |
1 |
|
1 |
1 |
0 |
0 |
1 |
|
1 |
1 |
1 |
1 |
1 |
Truth tables are often used to
show pairs of functions, such as these two,
which will later be shown to be
related. This is easier than two
complete tables.
Truth tables rarely show more
than two functions, just because large truth
tables are “messy” and hard to
read.
Labeling
Rows in a Truth Table
The
row numbers are just labels. They are
not really a part of the truth table, but
aid in our discussions and
conversions to Boolean expressions.
The
row numbers are the decimal equivalents of the variable values viewed as binary
|
Row
Number |
X |
Y |
Z |
F(X,
Y, Z) |
|
0 |
0 |
0 |
0 |
1 |
|
1 |
0 |
0 |
1 |
1 |
|
2 |
0 |
1 |
0 |
0 |
|
3 |
0 |
1 |
1 |
1 |
|
4 |
1 |
0 |
0 |
1 |
|
5 |
1 |
0 |
1 |
0 |
|
6 |
1 |
1 |
0 |
1 |
|
7 |
1 |
1 |
1 |
1 |
numbers. The first row is always “row 0”.
0 = 0·4 + 0·2 + 0·1
1 = 0·4 + 0·2 + 1·1
2 = 0·4 + 1·2 + 0·1
3 = 0·4 + 1·2 + 1·1
4 = 1·4 + 0·2 + 0·1
5 = 1·4 + 0·2 + 1·1
6 = 1·4 + 1·2 + 0·1
7 = 1·4 + 1·2 + 1·1
The S and P Notations
These
can be viewed as shorthand notation for expressing truth tables.
S notation: Give the row numbers in which the function
has value 1.
P notation: Give the row numbers in which the function
has value 0.
Example: The
Exclusive OR (XOR) function
|
Row Number |
X |
Y |
X Å Y |
|
0 |
0 |
0 |
0 |
|
1 |
0 |
1 |
1 |
|
2 |
1 |
0 |
1 |
|
3 |
1 |
1 |
0 |
X Å Y = S ( 1, 2 ) X
Å Y = P ( 0, 3 )
Exercise: Convert
F(X, Y, Z) = S ( 0, 2, 4, 6 ) to the P notation.
Answer: The
function has three variables, so the truth table has 23 = 8 rows,
numbered 0 through
7. If rows 0, 2, 4, and 6 have ones,
then the rows
containing zeroes
must be 1, 3, 5, and 7. F(X, Y, Z) = P ( 1, 3, 5, 7 ).
Examples: F1
and F2
Consider
the two functions (F1 and F2), which we shall explain later.
|
Row |
A |
B |
C |
F1(A, B, C) |
F2(A, B, C) |
|
0 |
0 |
0 |
0 |
0 |
0 |
|
1 |
0 |
0 |
1 |
1 |
0 |
|
2 |
0 |
1 |
0 |
1 |
0 |
|
3 |
0 |
1 |
1 |
0 |
1 |
|
4 |
1 |
0 |
0 |
1 |
0 |
|
5 |
1 |
0 |
1 |
0 |
1 |
|
6 |
1 |
1 |
0 |
0 |
1 |
|
7 |
1 |
1 |
1 |
1 |
1 |
F1(X, Y, Z) = S ( 1, 2, 4, 7 ) = P ( 0, 3, 5, 6 )
F2(X,
Y, Z) = S ( 3,
5, 6, 7 ) = P ( 0, 1, 2, 4 )
Evaluation
of Boolean Expressions
The
relative precedence of the operators is:
1) NOT do this
first
2) AND
3) OR do
this last
As
in the usual algebra, parentheses take precedence.
A·B + C·D, often written as AB + CD, is read as (A·B) + (C·D)
is
read as
. The latter is really
messy.
A·B + C·D = 1·0 + 1·1 = 0 + 1 = 1
A·(B + C)·D = 1·(0 + 1)·1 = 1 · 1 · 1 = 1
=
= 0 · 0 + 1 · 0 = 0 + 0 = 0
=
=
= 1
=
= 0 · 1 = 0
Question:
Where to Put the 0’s and 1’s
We
now ask how to fill a truth table by evaluating a Boolean expression.
Example:
F(X, Y, Z) =
Step
1: There are three Boolean variables,
so the truth table will have 8 rows.
Let’s
evaluate this function for all eight possible values of X, Y, Z.
Row 0 X = 0 Y = 0 Z = 0 F(X, Y, Z) = 0·0 + 0·0 + 0·1·0 = 0 + 0 + 0 = 0
Row 1 X = 0 Y = 0 Z = 1 F(X, Y, Z) = 0·0 + 0·1 + 0·1·1 = 0 + 0 + 0 = 0
Row 2 X = 0 Y = 1 Z = 0 F(X, Y, Z) = 0·1 + 1·0 + 0·0·0 = 0 + 0 + 0 = 0
Row 3 X = 0 Y = 1 Z = 1 F(X, Y, Z) = 0·1 + 1·1 + 0·0·1 = 0 + 1 + 0 = 1
Row 4 X = 1 Y = 0 Z = 0 F(X, Y, Z) = 1·0 + 0·0 + 1·1·0 = 0 + 0 + 0 = 0
Row 5 X = 1 Y = 0 Z = 1 F(X, Y, Z) = 1·0 + 0·1 + 1·1·1 = 0 + 0 + 1 = 1
Row 6 X = 1 Y = 1 Z = 0 F(X, Y, Z) = 1·1 + 1·0 + 1·0·0 = 1 + 0 + 0 = 1
Row 7 X = 1 Y = 1 Z = 1 F(X, Y, Z) = 1·1 + 1·1 + 1·0·1 = 1 + 1 + 0 = 1
This
function can be written as F(X, Y, Z) =
S(3, 5, 6, 7) where
the 1’s are
=
P(0, 1, 2, 4) where
the 0’s are
Some Basic
Identities of Boolean Algebra
Here
are a few identities basic to Boolean algebra, presented in two forms: the
“AND form” and the “OR form”. Some
resemble standard algebra and some do not.
|
Identity Name |
AND form |
OR form |
|
Identity Law |
1·X = X |
0+X = X |
|
Null (Dominance) Law |
0·X = 0 |
1+X = 1 |
|
Idempotent Law |
X·X = X |
X+X = X |
|
Inverse Law |
X·X’ = 0 |
X+X’ = 1 |
|
Commutative Law |
X·Y = Y·X |
X+Y = Y+X |
|
Associative Law |
X·(Y·Z) = (X·Y)·Z |
X+(Y + Z) = (X + Y)+Z |
|
Distributive Law |
X + (Y·Z) = (X+Y)·(X+Z) |
X·(Y + Z) = (X·Y) + (X·Z) |
|
Absorption Law |
X·(X + Y) = X |
X+(X·Y) = X |
|

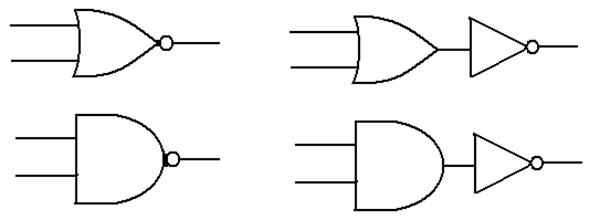

DeMorgan’s Law |
(X·Y)’ = X’ + Y’ |
(X + Y)’ = X’·Y’ |

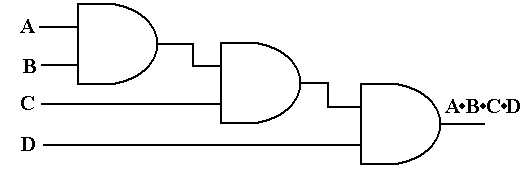

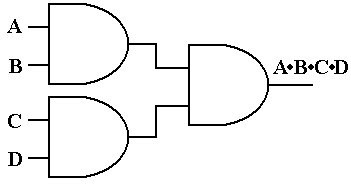

It is due to the
associative law, one can unambiguously write
expressions such as
X·Y·Z and X + Y + Z.
The Basic
Unusual Boolean Theorem
Here
are two sets of theorems in Boolean algebra.
For all X 0·X = 0 OK
For all X 1·X = X OK
For all X 0 + X = X OK
For all X 1 + X = 1 What?
Consider
the following truth tables
|
W |
X |
W + X |
|
0 |
0 |
0 |
|
0 |
1 |
1 |
|
1 |
0 |
1 |
|
1 |
1 |
1 |
From this, we derive the truth
table proving the last two theorems.
|
X |
0 + X |
1 + X |
|
0 |
0 |
1 |
|
1 |
1 |
1 |
The
Principle of Duality
If
a statement in Boolean algebra is true, so is its dual.
To
take the dual of an expression do the following:
change all logical AND to logical
OR and all logical OR to logical AND
change all 0 to 1 and 1 to 0.
Postulate Dual
0·X = 0 1
+ X = 1
1·X = X 0
+ X = X
0 + X = X 1·X = X
1 + X = 1 0·X = 0
An Unexpected Pair: Two
distributive laws, each the dual of the other.
For
all Boolean values of Boolean variables A, B, C: A·(B + C) = A·B + A·C
For
all Boolean values of Boolean variables A, B, C: A + B·C = (A + B)·(A + C)
If
A = 1, the statement becomes 1 + B·C = (1 + B)·(1 + C), or 1 = 1·1.
If
A = 0, the statement becomes 0 + B·C = (0 + B)·(0 + C), or B·C = B·C.
Another Look
at the Second Distributive Law
Let’s
use the truth table approach to proving the equality A + B·C = (A + B)·(A + C).
|
A |
B |
C |
(A + B) |
(A + C) |
B·C |
A
+ B·C |
(A
+ B)·(A
+ C) |
|
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
0 |
0 |
1 |
0 |
1 |
0 |
0 |
0 |
|
0 |
1 |
0 |
1 |
0 |
0 |
0 |
0 |
|
0 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
1 |
0 |
0 |
1 |
1 |
0 |
1 |
1 |
|
1 |
0 |
1 |
1 |
1 |
0 |
1 |
1 |
|
1 |
1 |
0 |
1 |
1 |
0 |
1 |
1 |
|
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
Note that the last two
columns show values that are identical for all possible
combinations or X, Y, and Z. For that
reason, the two functions are identical.
We
now show a few tricks for generating truth tables.
Example
(Page 1)
Consider
the truth table for the Boolean expression A + B·C.
We
start with the basic truth table, which has eight rows.
|
A |
B |
C |
B·C |
A + B·C |
|
0 |
0 |
0 |
|
|
|
0 |
0 |
1 |
|
|
|
0 |
1 |
0 |
|
|
|
0 |
1 |
1 |
|
|
|
1 |
0 |
0 |
|
|
|
1 |
0 |
1 |
|
|
|
1 |
1 |
0 |
|
|
|
1 |
1 |
1 |
|
|
To fill the column B·C, we enter a 0 when B = 0 and the value for C when B
= 1.
Example
(Page 2)
|
A |
B |
C |
B·C |
A + B·C |
|
0 |
0 |
0 |
0 |
|
|
0 |
0 |
1 |
0 |
|
|
0 |
1 |
0 |
0 |
|
|
0 |
1 |
1 |
1 |
|
|
1 |
0 |
0 |
0 |
|
|
1 |
0 |
1 |
0 |
|
|
1 |
1 |
0 |
0 |
|
|
1 |
1 |
1 |
1 |
|
To fill the column A + B·C, we place a 1 when A = 1, and the
value for B·C when A = 0.
Example
(Page 3)
|
A |
B |
C |
B·C |
A + B·C |
|
0 |
0 |
0 |
0 |
0 |
|
0 |
0 |
1 |
0 |
0 |
|
0 |
1 |
0 |
0 |
0 |
|
0 |
1 |
1 |
1 |
1 |
|
1 |
0 |
0 |
0 |
1 |
|
1 |
0 |
1 |
0 |
1 |
|
1 |
1 |
0 |
0 |
1 |
|
1 |
1 |
1 |
1 |
1 |
Other Logic
Gates
The
top gate shows the NOR gate and its logical equivalent.
The bottom line shows the NAND gate and its logical equivalent.
In
my notes, I call these “derived gates” as they are composites of Boolean gates
that are more basic from the purely theoretical approach.
X Y OR NOR X Y AND NAND
0 0 0 1 0 0 0 1
0 1 1 0 0 1 0 1
1 0 1 0 1 0 0 1
1 1 1 0 1 1 1 0
AND Gates
and OR Gates: The Real Way
In
actual fact, the NAND and NOR gates are more primitive than the AND, OR,
and NOT gates in that they are easier to build from transistors.

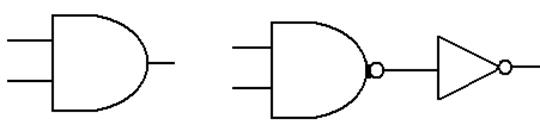

AND is NOT (NAND)
X Y NAND AND
0 0 1 0
0 1 1 0
1 0 1 0
1 1 0 1

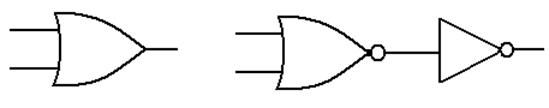

OR is NOT (NOR)
X Y NOR OR
0 0 1 0
0 1 0 1
1 0 0 1
1 1 0 1
Multiple–Input
Gates
The
standard definitions of the AND and OR gates call for
two inputs.
3–input
and 4–input varieties of these gates are quite common.
Here we give informal, but precise, definitions.
Gate Number of Inputs Output
NOT Exactly 1 0
if input is 1, 1 if input is 0
AND 2 or more 0
if any input is 0
1
if and only if all inputs are 1.
OR 2 or more 1 if any input is 1
0
if and only if all inputs are 0.
NAND 2 or more 1
if any input is 0
0
if and only if all inputs are 1
NOR 2 or more 0
if any input is 1
1
if and only if all inputs are 0.
Example:
“Changing the Number of Inputs”
Some
lab experiments call for gates with input counts other than what we have.
We
begin with two ways to fabricate a 4–input AND gate from 2–input ANDs.
Another
Example

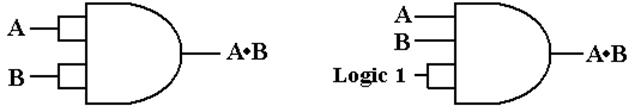

We
now consider how to take a 4–input AND gate and make it act
as if it were a 2–input AND gate.
There
are always multiple solutions. Here are
two solutions.
There are many others.
